Weighing under 32kg, the D7-215 can be packed into a standard Peli Air case and transported as hold luggage, allowing lighting designers and AV production teams to bring professional-grade control wherever their events take place.
Following the success of the flagship Diamond 9, the Diamond 7 series is available in two models: D7-330 and D7-215. Both consoles inherit the powerful design language and advanced control capabilities of the D9, ensuring seamless show continuity when travelling between venues or supporting larger productions.
For event production companies delivering complete AV solutions, the Diamond 7 offers the reliability and flexibility required to manage sophisticated lighting rigs across corporate events, conferences, concerts, studios, and live productions.

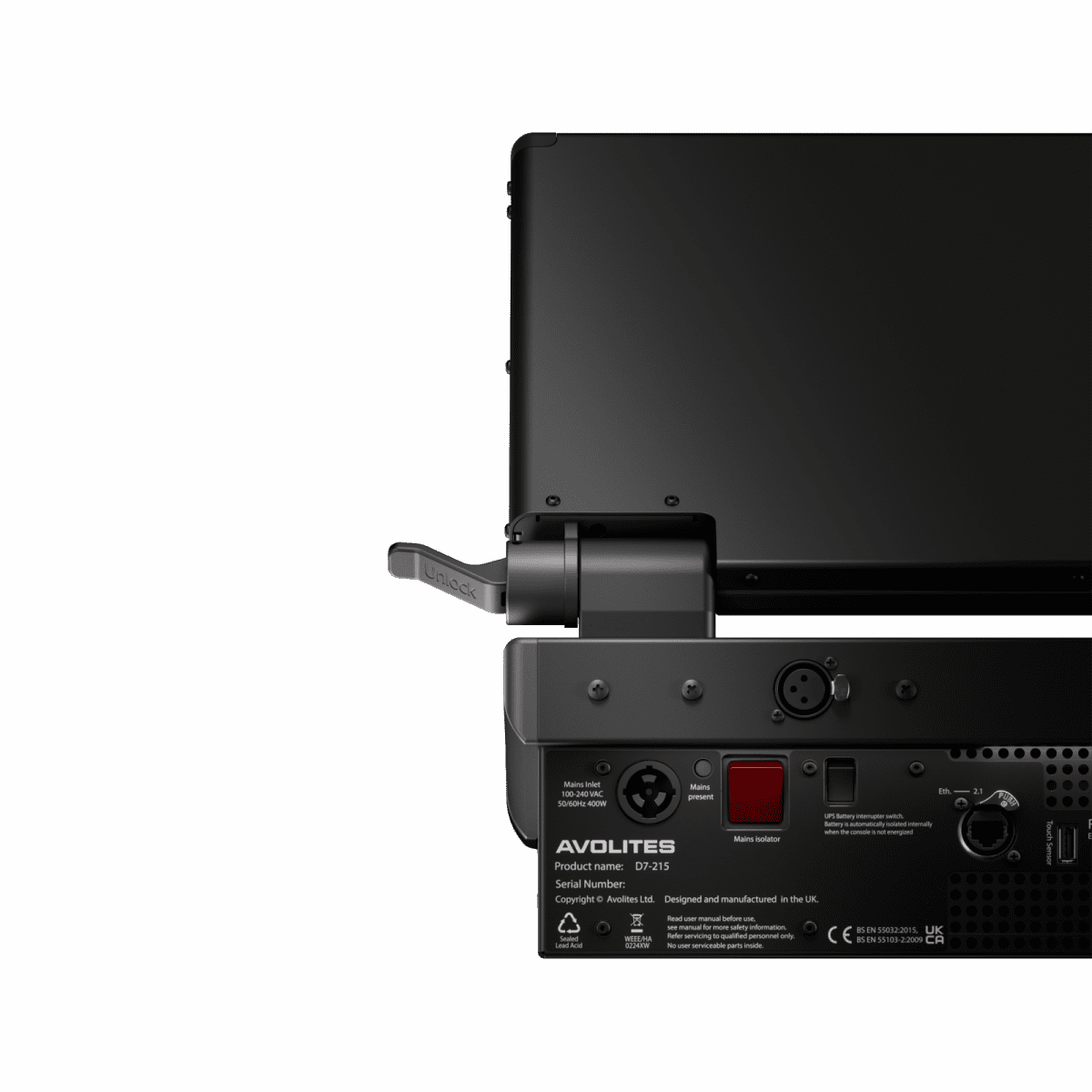

The Avolites D7-215 innovative clam-shell LCD panel design allows the console to remain compact for transport while providing a robust, professional workspace on site. A quick locking mechanism and adjustable screen angles (90°–155°) allow lighting designers to adapt quickly to different event environments and production setups.
With a comprehensive range of inputs and connectivity options, the Diamond 7 integrates seamlessly with complex event lighting systems, AV networks, and production equipment. This makes it a powerful control solution for large-scale lighting rigs and professional event lighting kits.

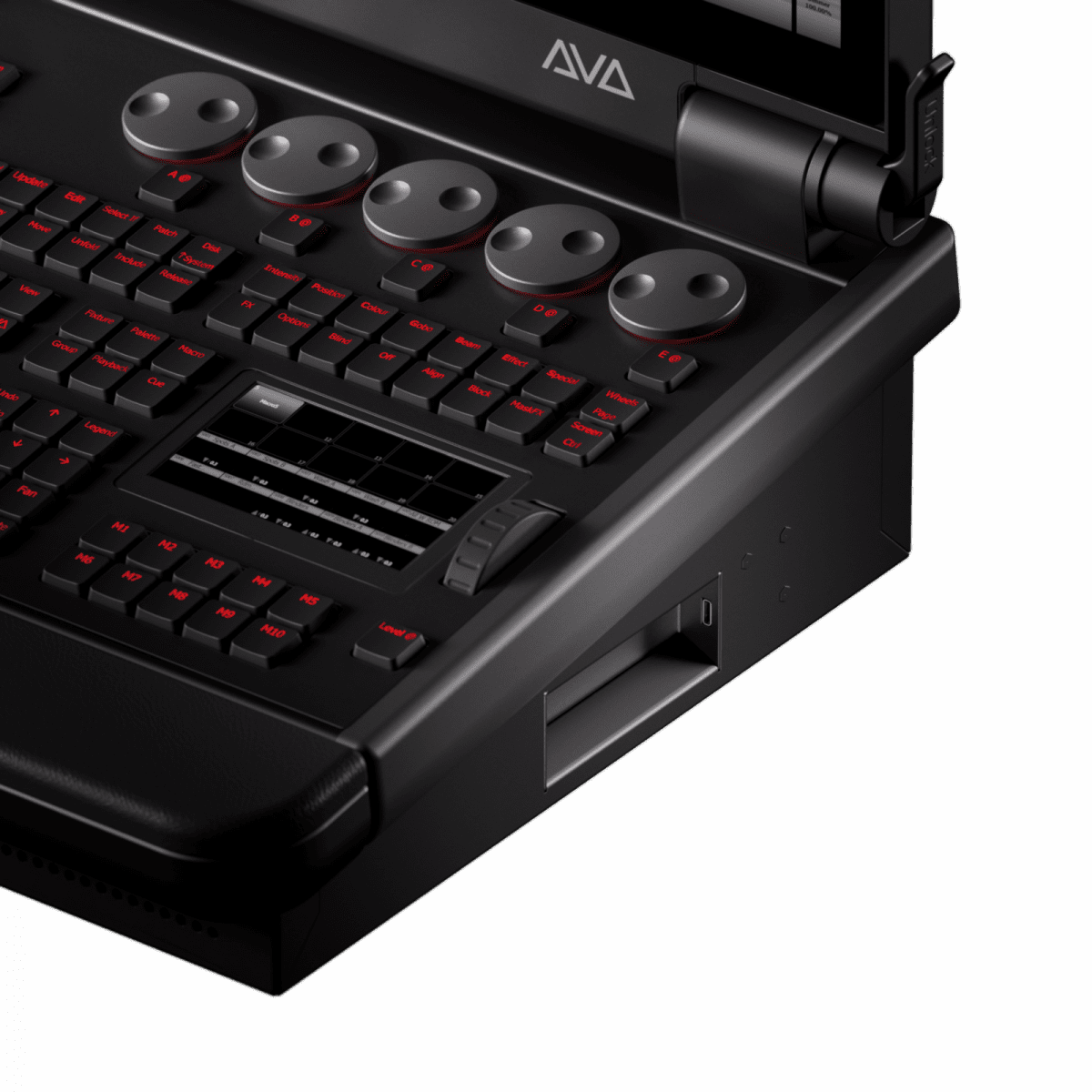

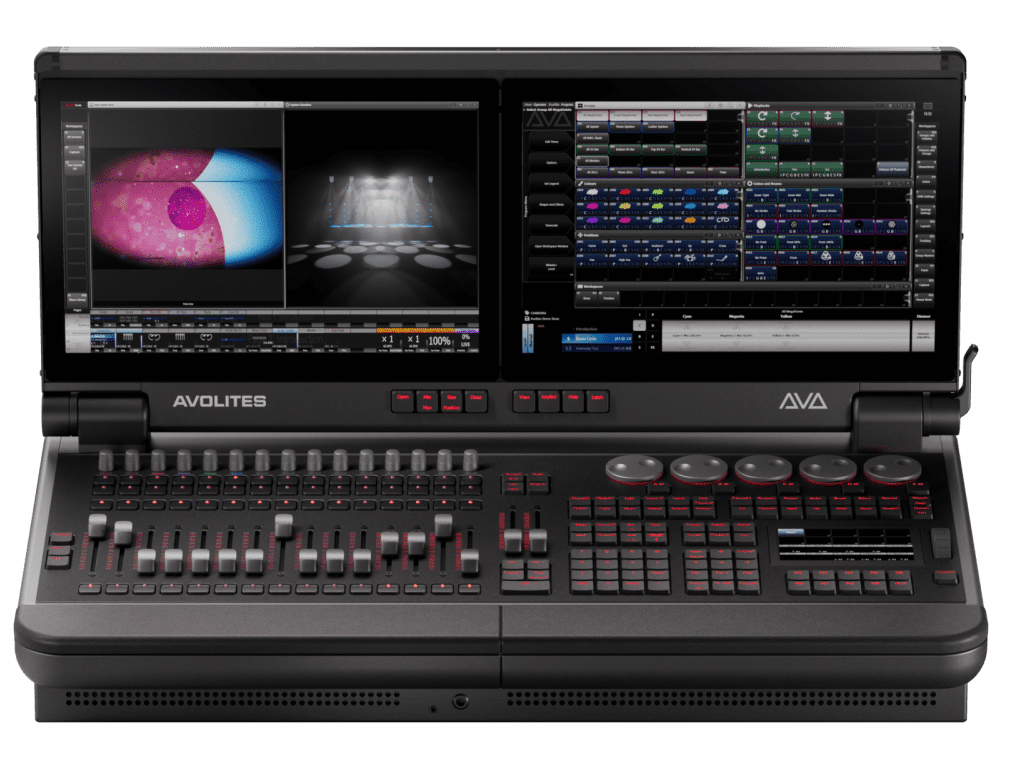

The Avolites D7-215 console features a high-end control surface designed for fast, intuitive operation during live productions. Ultra high-resolution touch-sensitive playback encoders, motorised faders, and push-function controls provide precise adjustment and real-time responsiveness—essential for dynamic lighting control in live events and stage productions.

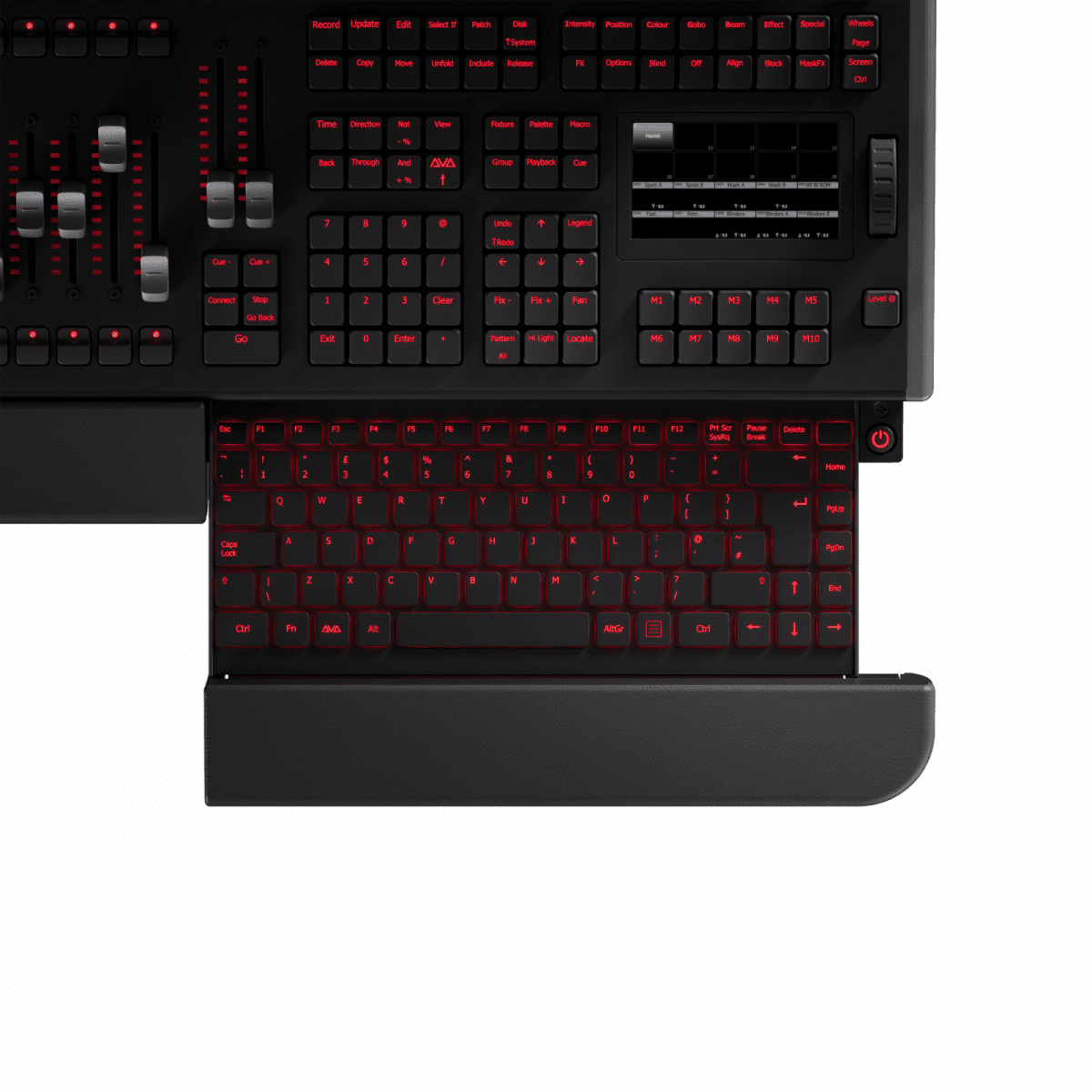

The integrated backlit keyboard ensures efficient programming even in low-light backstage environments, while a concealed power button maintains a clean, professional console layout. A discreet USB 3.0 port hidden within the handle recess allows operators to safely store show files without exposing drives during events.
Despite its compact footprint, the Avolites D7-215 offers exceptional programming capability and lighting control. It’s the ultimate portable console for touring productions, event lighting designers, and AV production teams, delivering professional-grade performance without compromising portability.
For companies delivering complete AV solutions for events, the Diamond 7 ensures your lighting design remains powerful, flexible, and show-ready wherever your production takes you.
| Manufacturer | Avolites |
|---|---|
| Controls | 15 Motorized Faders, 15 Playback Encoders, 5 Optical Attribute Encoders, Dual Master Cue-List Faders. |
| DMX Connectivity | 4 x Neutrik 5-Pin XLR with isolated outputs. |
| Hardware | Internal QWERTY keyboard in drawer, Cherry® MX low-profile switches |
| Networking | 4 x Neutrik XLR on primary port (switched), 1 x Secondary Network Port. |
| Screens | 2 x 14” capacitive main screens (1920x1200) + 1 x 4.3” Workspace screen. |
| Transport | Fits in a Peli Air 1615 case |
| Unit Dimensions (W X D X H) | 8 x 36 x 42 cm (Screens unfolded) or 68 x 36 x 18 cm (Screens folded) |
| Weight | 17 KG / 37 LBS |
| Additional Features | Integrated 10-button Macro/Executor bank. Supports 2 x external DisplayPort 1920*1080 touchscreens. Includes MIDI (In/Out/Thru), LTC/Timecode, and GPIO ports. Features an internal UPS |
