The Quartz gives lighting operators comprehensive control over complex lighting systems, allowing multiple fixtures, effects and lighting states to be programmed and managed from a single console. This provides the flexibility needed to create dynamic lighting looks, coordinate changes during live performances and respond quickly to the requirements of a production.
For event hire, the Quartz provides a professional control platform that can handle demanding lighting setups while remaining practical for touring and temporary productions. Its robust design and professional feature set make it suitable for production companies and lighting operators who need reliable control throughout an event, from initial programming and rehearsals through to the live performance.

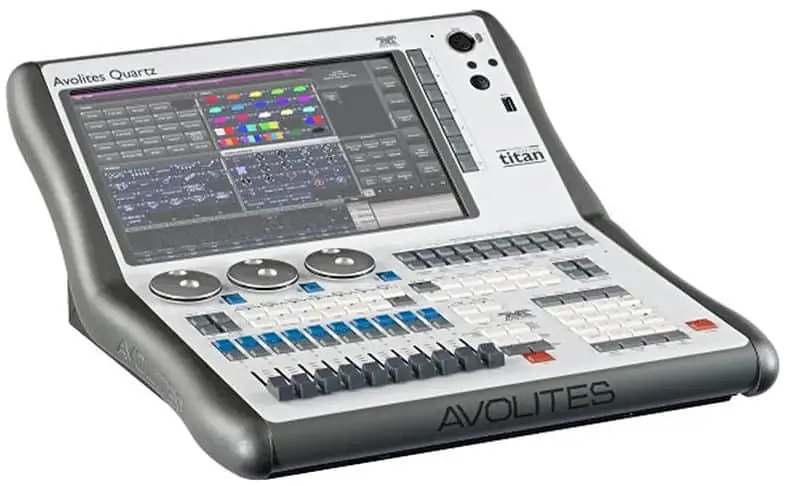

The Avolites Quartz is therefore an excellent choice for professional lighting hire across a wide range of events. Whether it is controlling a concert lighting rig, managing theatrical effects or creating sophisticated looks for a corporate production, the Quartz provides the flexibility, control and professional performance required for modern event lighting.
| Manufacturer | Avolites |
|---|---|
| Hardware & Physical Specs | : |
| Screens | 2 x 14" adjustable touch displays (90 to 155-degree tilt) and 1 x 4.3" touch screen. |
| Playbacks | 15 motorised, touch-sensitive faders and 15 playback encoders. |
| Weight | 19 kg (41.8 lbs) |
| Dimensions (Screens Up) | 69 x 39.5 x 43 cm |
| Dimensions (Screens Down) | 69 x 36.5 x 17 cm |
| Power Consumption | Max 270 W (110–240 VAC) |
| Internal UPS | Up to 5 separate 4-minute backup periods integrated via software |
| Software & Capacity | : |
| Software Platform | Avolites Titan |
| DMX Channels (Per Device) | 16,384 |
| DMX Channels (Per System via Titan Net) | Up to 32,768 (32 universes) |
| Max Fixtures | 32,000 |
| Effects & Mapping | Keyframe Effect Engine and Synergy/Titan pixel mapping |
| Connections & Control | : |
| Outputs | 4 isolated DMX512 outputs (5-pin XLR), Art-Net, and s-ACN |
| Network | Neutrik XLR network ports (primary and secondary switched connections) |
| External Control | Web API, SMPTE, MIDI, DMX, and GPIO |
