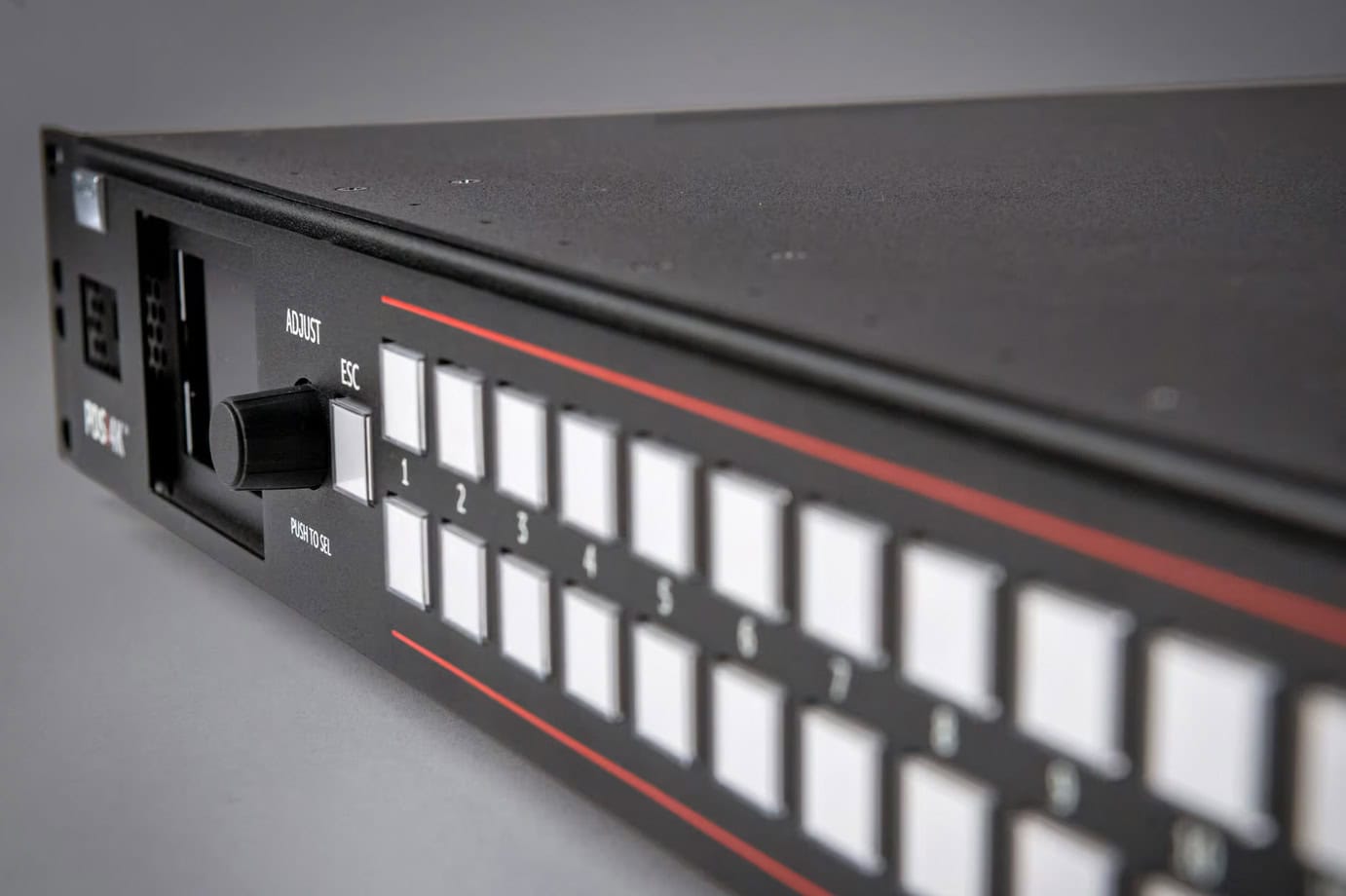

The PDS-4K switcher guarantees unsurpassed performances and outstanding visual experience while also being exceptionally easy to operate. With just one simple press on the buttons of the intuitive front panel interface, you can switch easily between the input sources and preconfigured layouts. What’s more, the PDS-4K is compatible with all the familiar Barco visualization solutions and presentation devices (e.g. ClickShare) without compromising on video quality. The PDS-4K can be controlled with Event Master Toolset, and thanks to the API it can also be combined with other third- party control panels.
2x outputs up to 4K60 or 4x outputs up to 4K30
Each with single mixing PiP or two non-mixing PiPs on a still background
Are you planning a Corporate Event, Conference or you are looking for solutions for your boardroom? Get in touch with the team to see how the Barco PDS4K can enhance your attendees experience!
| Manufacturer | Barco |
|---|---|
| Notes | Option Card slot to support additional video input connectors, embedded audio processing and Dante® Audio |
| Live Effects Canvas | 2x outputs up to 4K60 or 4x outputs up to 4K30 each with single mixing PiP or two non-mixing PiPs on a still background |
| Video Inputs | 6x HDMIâ„¢ 2.0 connectors |
| Video Outputs | 4x HDMIâ„¢ 2.0 connectors |
| Program Output | Two UHD @60 PGM or Four UHD @30 / FHD @60 PGM |
| Keying/Mixing | Luma and Chroma on non-mixing PiPs |
| Mixers | 1 mixer per PGM output |
| Still Stores | Eight stills, up to 4K each |
| Multiviewer | 1x UHD@60 output with user definable layouts consisting of inputs plus PVW and PGM for each screen |
| Expandability | Option card slot for other video connector types and/or Dante® audio |
| HDCP | HDCP 1.x and 2.2 |
| Dimensions (HxWxD) | 6.62 cm (2.605 in) x 48.41 cm (19.06 in) x 40,9 cm (16.1 in) |
| Control | Front panel mappable buttons Event Master screen management software for PC or MAC Event Master controllers WebUI Ethernet RJ-45, 1000/100/10 Mbps autosense |
| Noise Level | 37 dB in a room temperature environment (23°C/73°F) |
| Weight | 6.21 kg (13.7 lbs) |
| Power | Input power: 100-240 VAC 50/60Hz 151W |
| Environmental Temperature | 0-40° C (32-104 F) |
| Environmental Humidity | 0-95% non-condensing (non-operating) 0-85% non-condensing (operational) |
| Warranty | 3 Years Parts And Labor |
