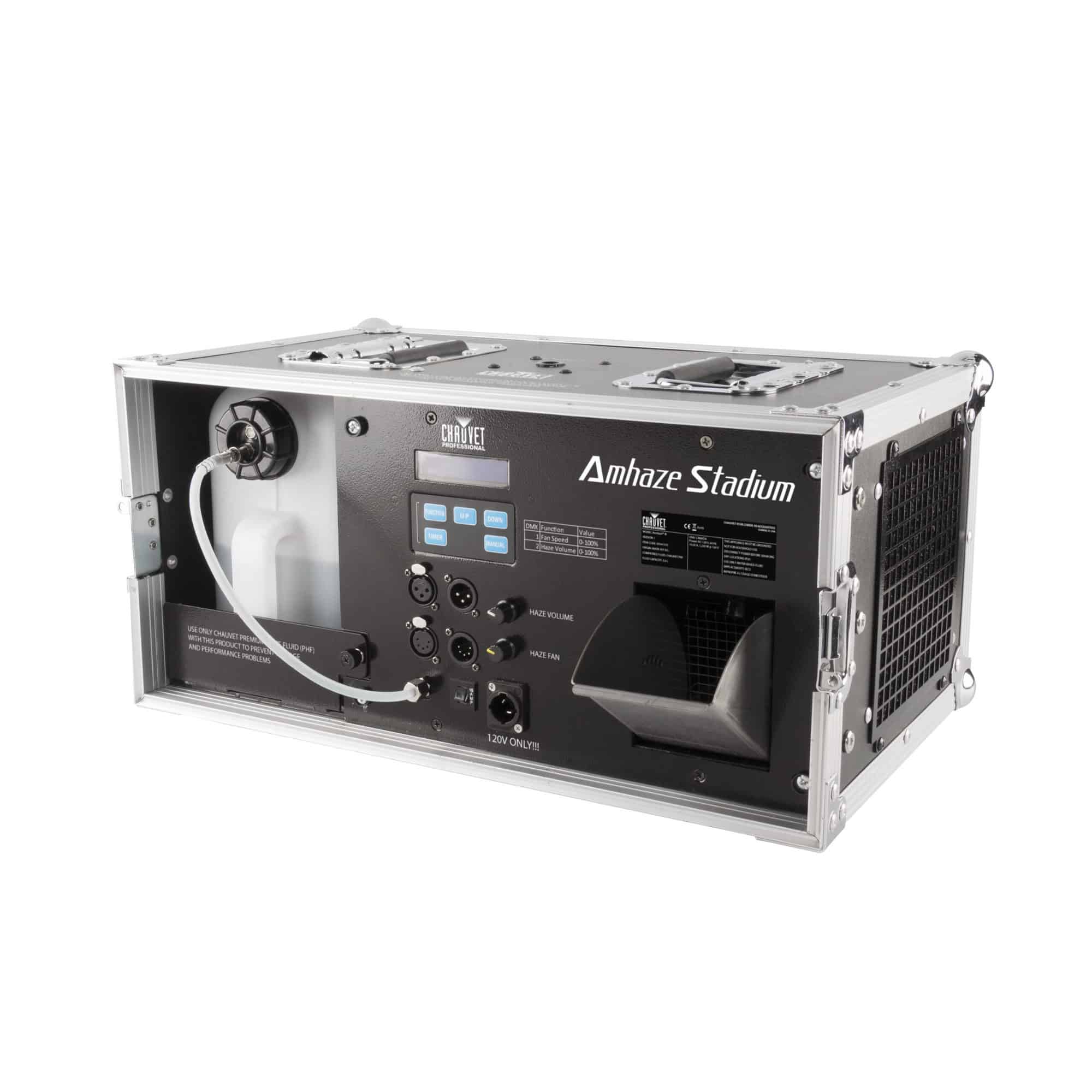

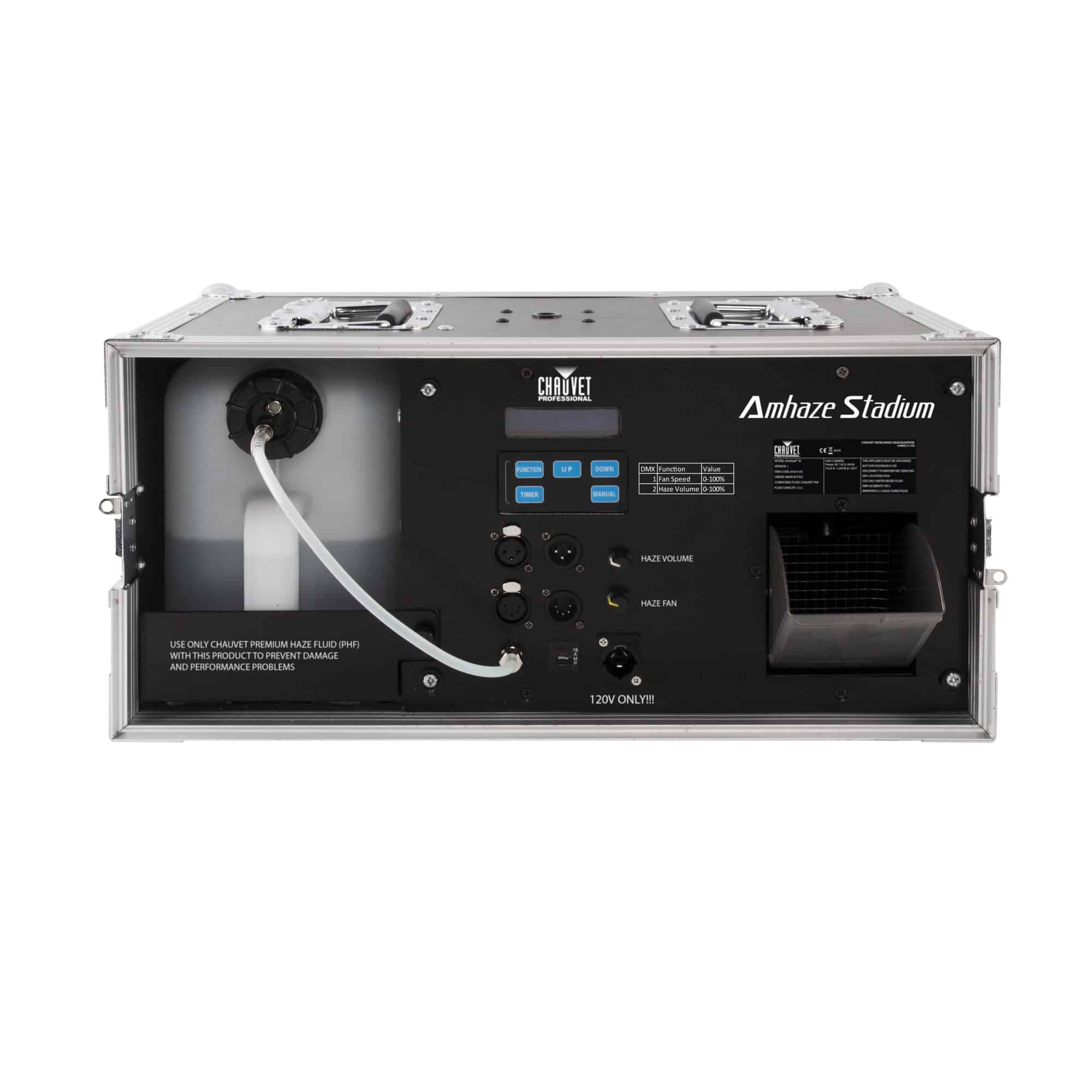

Chauvet Amhaze Stadium

Amhaze Stadium is a tour-ready professional water-based haze machine ideal for large-scale applications. With an output of 14,000 cfm, the Amhaze Stadium boasts an impressive 30-second heat-up time. It also features a durable, low-profile road case to survive the rigors of touring and production. The output and speed of haze can be easily adjusted via DMX or the LCD screen, and the unit comes equipped with an M12 threaded insert for hanging.

DYNAMIC EFFECTS
Output: 14,000 cfm
Low Fluid Shutdown: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 20.60 in (523.42 mm) x 10.80 in (274.9 mm) x 15.97 (405.7 mm)
Weight: 38.4 lb (17.4 kg)
Threaded Bolt: M12
Exterior Color: Black
Tank Capacity: 1.3 gal (4.92l)
Fluid Consumption: 7.45 ml/min (0.12 gallons/hour)
Maximum Run time: 11 hours @ full volume
CONNECTIONS
Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX
DMX Channels: 2
Modes/Personalities: 1 personality
On-Board Control: Yes
ELECTRICAL
Input Voltage: 120 VAC, 50/60 Hz or 230 VAC, 50 Hz
Power and Current: 1,230 W, 10.25 A @ 120 V, 50/60 Hz
Power and Current: 2,430 W, 10.56 A @ 230 V, 50 Hz
Heat-up Time: 30 sec
CERTIFICATIONS / QUALIFICATIONS
CE
IP Rating: IP20, dry location
Thermal Dissipation @ 120V: 4,195 BTU per hour (max)
Thermal Dissipation @ 230V: 8,290 BTU per hour (max)

Manufacturer	Chauvet
