The fixture provides lighting designers with extensive creative possibilities, allowing individual sections of the bar to be controlled to create dynamic colour effects and movement across the fixture. This makes it particularly effective for creating eye-catching stage looks, accentuating architectural features and adding visual depth to larger lighting designs.

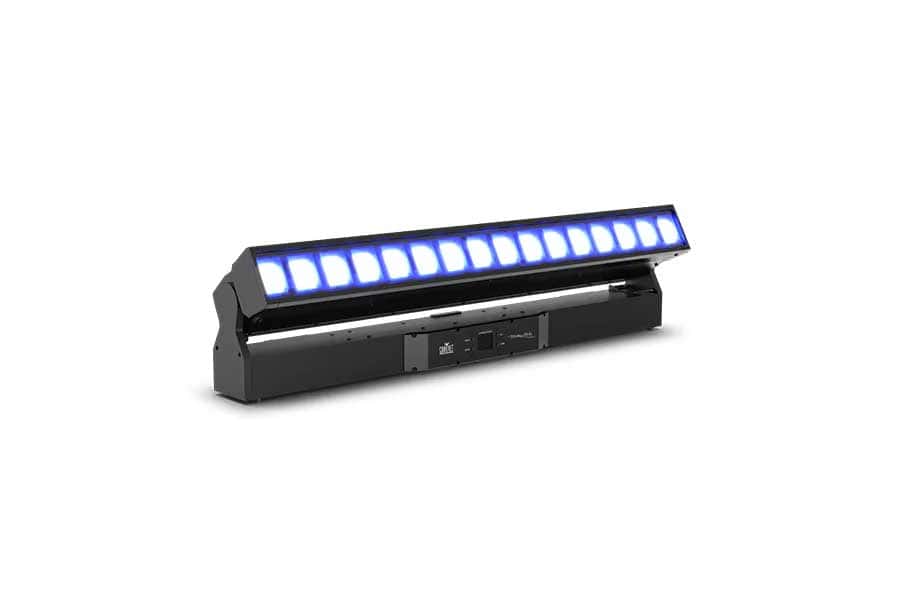

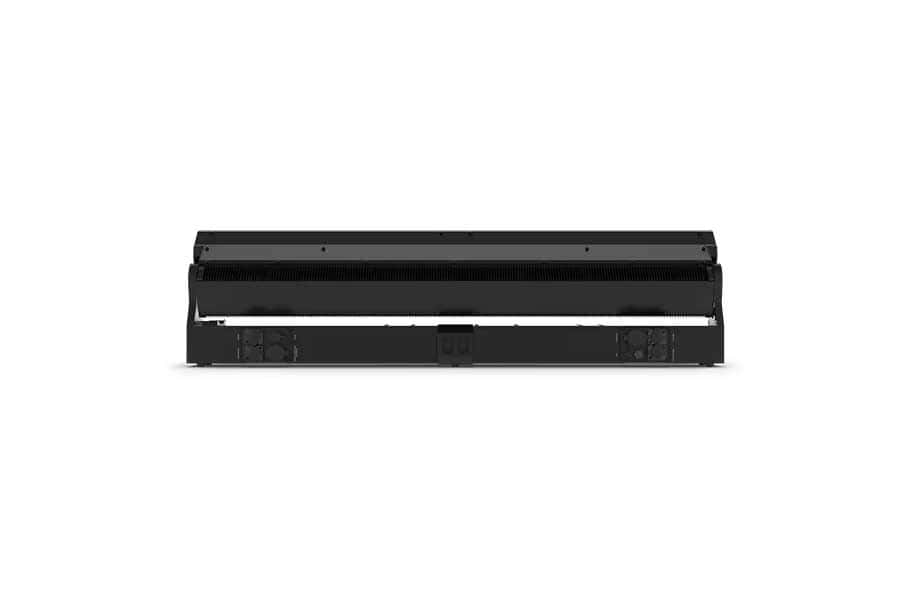

For event hire, the COLORado PXL Bar 16 offers excellent flexibility and can be incorporated into a wide range of professional lighting rigs. Its bar format allows it to be positioned creatively across stages, trussing, backdrops and venue structures, while pixel control gives lighting operators the ability to create sophisticated effects that complement music, video and other elements of a live production.
The Chauvet COLORado PXL Bar 16 is therefore a highly versatile choice for professional event lighting hire. Whether it is being used to create dynamic stage effects at a concert, add colour to a festival production or enhance a corporate event, its combination of powerful LED lighting and pixel-controlled effects provides the creative flexibility needed to deliver an engaging visual experience.
| Manufacturer | Chauvet |
|---|---|
| Optical and Light Source Specifications | : |
| LED Light Source | 16 LEDs (Quad-colour RGBW), each 45 W (3.0 A), rated for 50,000 hours of life. |
| Color Temperature (Range) | 8875 K |
| Beam Angle | 5.8° to 30.4° |
| Field Angle | 8.9° to 42.2° |
| Cutoff Angle | 10° to 47.9° |
| Zoom Range | 5.8° to 47.9° (motorised, 2 zoom sections) |
| Illuminance (5.7°) | 27,415 lux @ 5 m |
| Illuminance (43.3°) | 1,294 lux @ 5 m |
| Movement and Dynamic Effects | : |
| Tilt Range | Motorised smooth tilt operation up to 200° |
| Pixel Control | Fully pixel-mappable individual cells with maintained pixel pitch across multiple fixtures |
| Built-in Effects | Virtual gobos and movement macros with independent foreground and background color control |
| Strobe Rate | 0 to 20 Hz |
| Dimmer Modes | Electronic dimmer with selectable dimming curves |
| Control and Connectivity | : |
| Control Protocols | Art-Net, DMX, sACN, RDM, and Kling-Net |
| DMX Channels / Personalities | 20, 84, 154, or 186 channels |
| Data Connections | IP65-rated 5-pin XLR input/output, and Seetronic IP-rated RJ45 (TCP/IP) in/out ports |
| Software Upload | IP65-rated USB-C port |
| Power and Electrical | : |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Consumption | 790 W (6.60 A @ 120 V, 3.485 A @ 230 V) |
| Power Connections | Seetronic PowerCON IP65 power input and output |
| Physical and Environmental | : |
| IP Rating | IP65 (temporary outdoor or wet use, includes pressure-equalising M12 GORE valve) |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Dimensions | 1000 x 139 x 273 mm (39.37 x 5.47 x 10.75 in) |
| Weight | 20.7 kg (45.6 lb) |
| Housing Material | High-impact flame-retardant polymer / aluminum alloy |
| Rigging Hardware | Included slotted Omega brackets for fast truss hanging |
