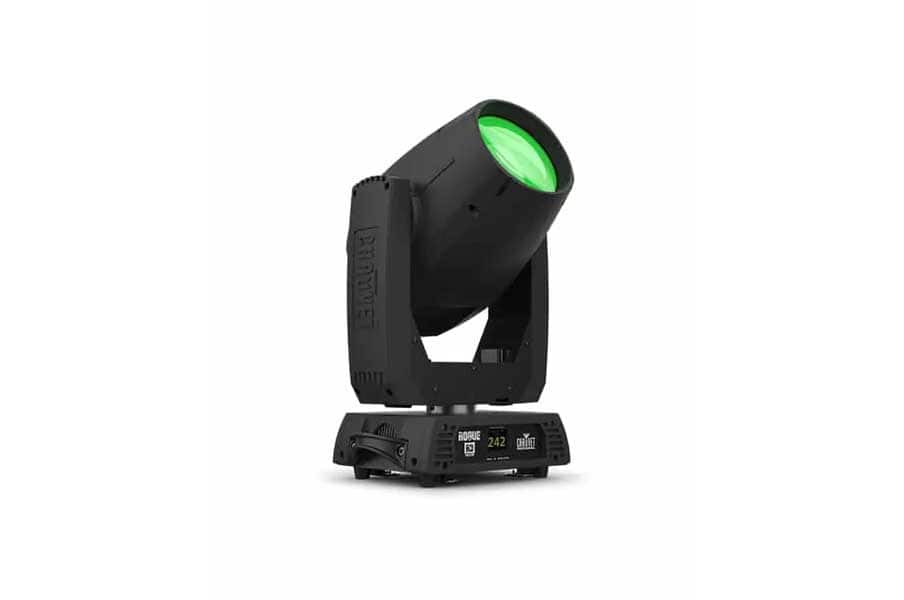

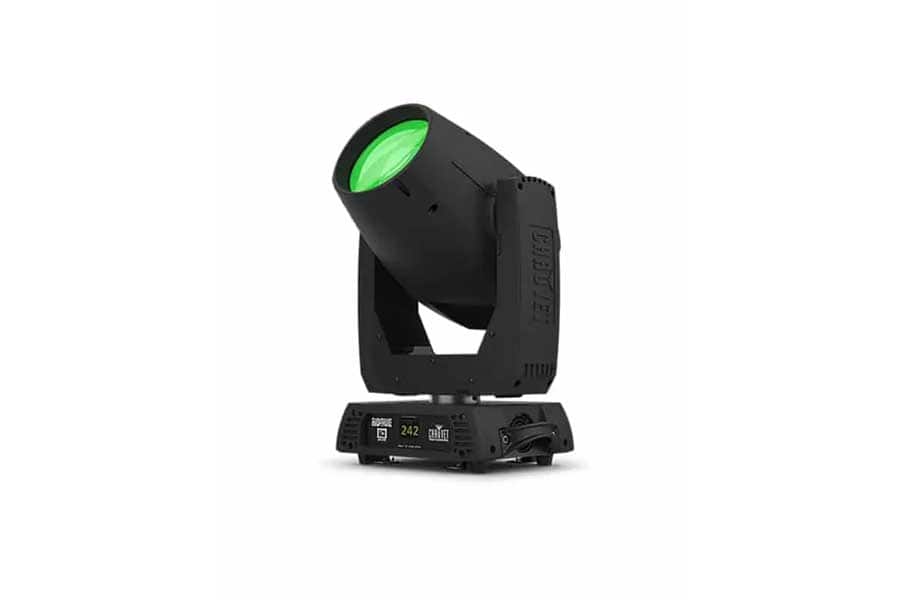

The Rogue R3 Beam gives lighting designers the ability to create sharp, concentrated beams that can move rapidly across a venue. Its beam effects can be used to create striking aerial looks, dynamic movement and dramatic lighting moments, making it particularly effective when combined with haze or atmospheric effects during live performances.
For event hire, the fixture offers considerable creative flexibility and can form part of a larger professional lighting rig. Its moving-head design allows lighting operators to direct effects across different areas of a stage or venue, helping create constantly changing looks that complement music, performances and other production elements.
The Chauvet Rogue R3 Beam is therefore an excellent choice for professional event lighting hire where visual impact is important. Whether it is being used for a concert, festival, club night, theatre production or corporate show, its powerful beam effects and dynamic movement provide lighting designers with the tools to create an engaging and memorable visual experience.
| Manufacturer | Chauvet |
|---|---|
| Optical & Light Source | : |
| Lamp | 300W NSL Ushio discharge lamp (8,000 hours life expectancy) |
| Color Temperature | 7,657 K at full |
| Output Lumens | 30,878 lumens |
| Illuminance | 208,006 lux @ 15 m (49.2 ft) |
| Beam Angle | 0.8° |
| Field Angle / Cutoff Angle | 1.6° / 2° |
| Lens Diameter | 153 mm |
| Dynamic Effects | : |
| Colors | 14 + white (solid and split colours, continuous variable-speed scroll) |
| Gobos | 17 static gobos + open (continuous variable-speed scroll) |
| Prism 1 | 8-facet circular (motorised, rotating) |
| Prism 2 | 24-facet circular (motorised, rotating, layerable with 8-facet) |
| Frost | Motorised frost for wash-like soft edge |
| Focus | Motorised focus |
| Shutter/Strobe | Mechanical/motorised, 0 to 15 Hz |
| Movement & Control | : |
| Pan and Tilt | 540° pan / 270° tilt (16-bit resolution) |
| Control Protocols | DMX, RDM |
| DMX Channels | 16 or 19 |
| Display | LCD display with 4-button interface |
| Power & Physical | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Input Voltage | ~411 W to 422 W depending on voltage |
| Power Consumption | IP20 (indoor use only) |
| Housing Material | High-impact flame-retardant polymer |
