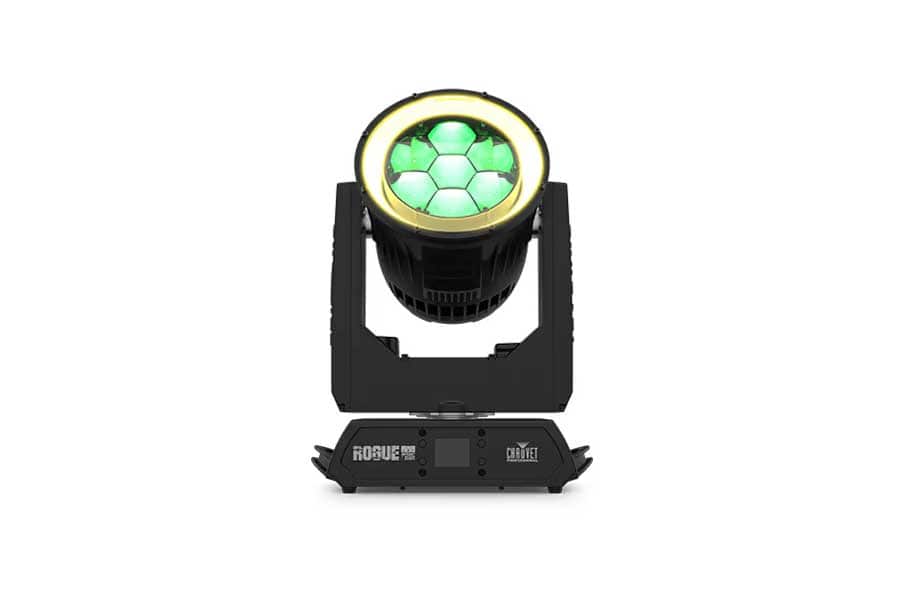

Rogue Outcast 1 BeamWash

Name: Rogue Outcast 1 BeamWash
Brand: Lighting
SKU: 15681
Availability: InStock

Rogue Outcast Beamwash | Bigabox Productions|Rogue Outcast Beamwash | Bigabox Productions|Rogue Outcast Beamwash | Bigabox Productions

Rogue Outcast 1 Beam Wash is a lightweight, IP65 rated, LED Beam & Wash fixture enhanced with a pixel-mappable LED ring around it’s face. A unique lens design developed for tight beam effects allows for a wide zoom range of 3.9° to 55.3° for maximum coverage. Seven 45W RGBW LED’s combine excellent colour mixing with a punchy output featuring 16-bit dimming and several dimming modes for advanced control. The outer ring comprises of 12-pixel mappable RGB LED zones underneath a smoked stealth filter. Easily create eye-catching effects with prebuilt programs for the ring with the ability to control dimming, rate, foreground, and background colours. This compact fixture weighs only 20lbs and features a rugged IP65 casing that is proven to withstand all the harshest elements. Control as you see fit with multiple profiles with simple and advanced control modes compatible with DMX & RDM protocols. Update software easily with an onboard USB-C port.

SPECIFICATIONS

OPTICAL

Field Angle: 5.9° to 49.8°
Cutoff Angle: 6.7° to 55.3°
Zoom Range: 3.9° to 55.3°
Lumens – Source: 5,900
Lumens – Output: 4,073
Illuminance (3.9°): 15,308 lux @ 5 m
Illuminance (55.3°): 473 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 7 units @ 208 V; 7 units @ 230 V
Power and Current: 385 W, 3.25 A @ 120 V, 60 Hz
Power and Current: 376 W, 1.92 A @ 208 V, 60 Hz
Power and Current: 372 W, 1.69 A @ 230 V, 50 Hz
Fuse Size: 8A, 250 V

CERTIFICATIONS / QUALIFICATIONS

CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
Maximum Ambient Temperature (ta) 45° C / 113° F

WHAT’S INCLUDED

Rogue Outcast 1 BeamWash
Seetronic Powerkon IP65 power cord
(2) Omega brackets with mounting hardware

OPTIONAL ACCESSORIES

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP Rated Seetronic® Powerkon Extensions
DMX Cables
Flight Case:
UPLOAD 08 software uploader

Manufacturer	Chauvet
