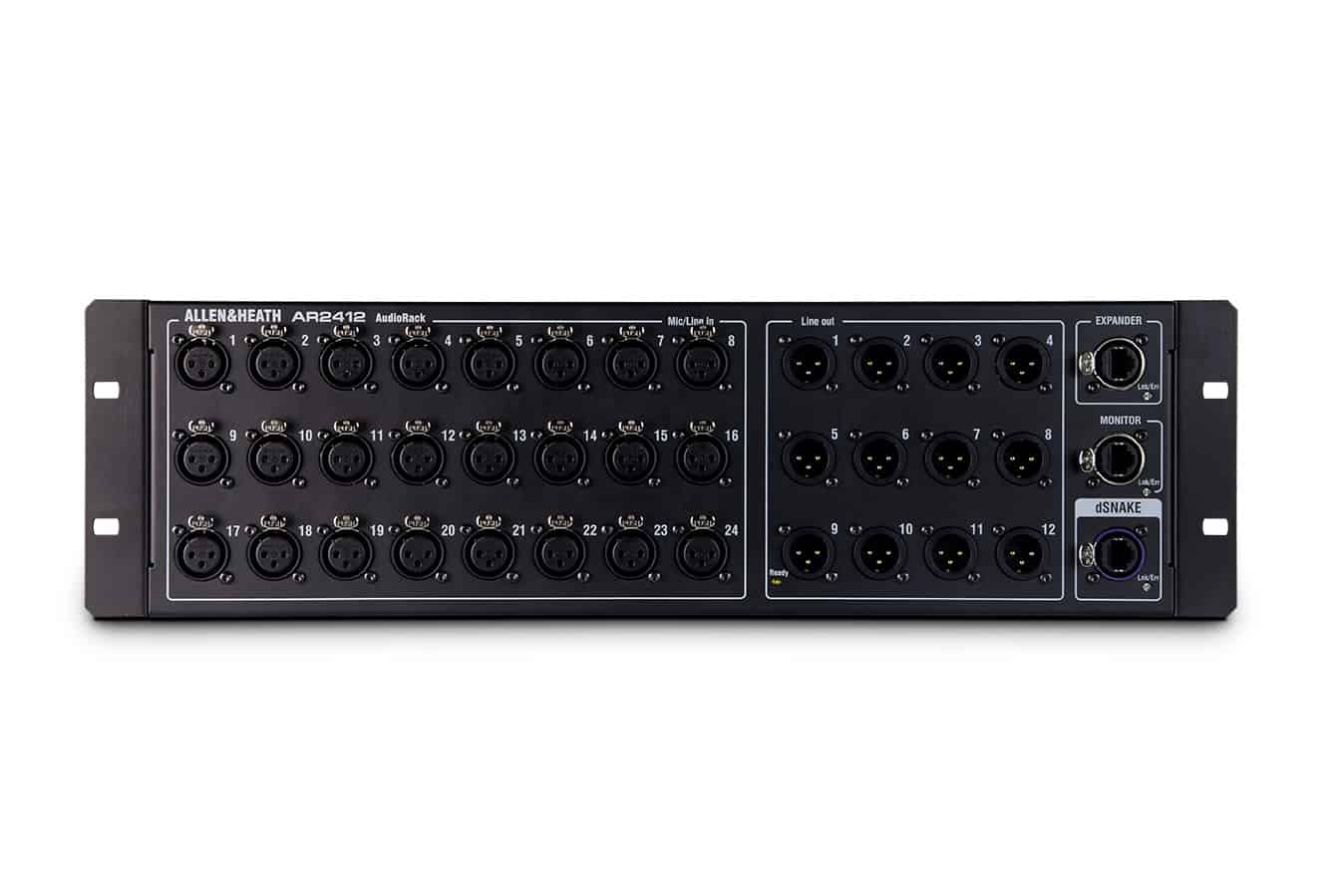

The Allen & Heath AR2412 is a 3U 19-inch rack-mountable digital stage box designed to extend compatible mixing consoles, such as the Qu, SQ, and Avantis series, with 24 XLR inputs and 12 XLR outputs. It operates at 48kHz and places your I/O and preamps close to the stage.
It connects to the host mixer using a single, standard Cat5 cable running Allen & Heath’s proprietary dSNAKE protocol, allowing the rack to be positioned up to 120 metres away. This setup provides remote, scene-recallable control over all microphone preamps and their +60 dB of gain.
For more expansive setups, the unit features an Expander port for daisy-chaining an additional AR84 or AB168 AudioRack, and a Monitor port for integrating with ME personal mixing systems. It also includes an Aviom Pro-16 compatible monitor port. It provides a true plug-and-play experience, handling automatic firmware updates directly through the host console.
| Manufacturer | Allen and Heath |
|---|---|
| General Specifications | : |
| Type | Digital AudioRack / Stage Box |
| Compatible Systems | Qu, SQ, Avantis, GLD series, and AHM matrix processors |
| Sample Rate | 48 kHz |
| Rack Space | 3U (482.6 × 219.4 × 136.7 mm) |
| Weight | 5 kg (11 lbs) |
| Inputs & Outputs | : |
| Inputs | 24 xlr mic/line inputs with phantom power, +60 dB gain, and -20 dB pads |
| Outputs | 12 xlr line outputs (balanced, relay protected) |
| Preamp Features | Fully scene recallable, remote-controlled via console |
| Connectivity & Expansion | : |
| Protocol | dSNAKE Layer 2 Ethernet protocol |
| Max Distance | Up to 100 m to 120 m over Cat5 cable |
| Expander Port | Allows daisy-chaining to additional units like the AR84 or AB168 |
| Monitor Port | Aviom Pro16 compatible and supports Allen & Heath ME Personal Mixing Systems |
