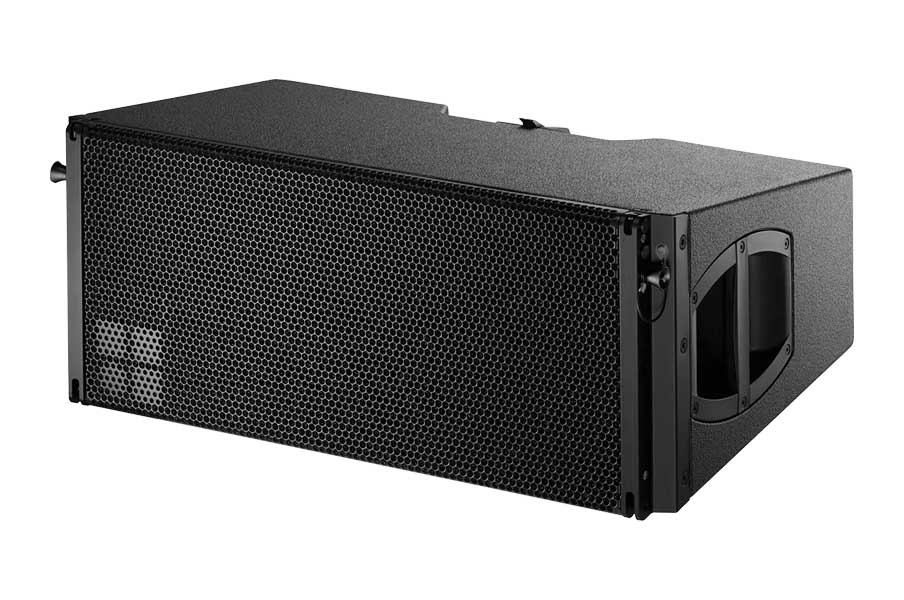

The Y12 Line Array Loudspeaker delivers controlled sound dispersion and excellent clarity, helping ensure that audiences throughout a venue receive a consistent listening experience. Its line array design allows multiple loudspeakers to be combined to create scalable sound systems suited to different venue sizes and audience requirements, making it a highly versatile option for professional event hire.
For event production teams, flexibility and reliability are essential. The Y12 Line Array Loudspeaker can be integrated into professional d&b sound systems and configured to suit the requirements of different venues and productions. Its robust professional construction also makes it well suited to the demands of touring, repeated installation and live event use.
The combination of powerful output, precise coverage and scalable system design makes the Y12 Line Array Loudspeaker an excellent choice for event hire. Whether it is being used for a large corporate production, concert, festival or outdoor event, the d&b Y12 provides the professional audio performance and consistent coverage required for demanding live sound applications.
| Manufacturer | D&B |
|---|---|
| System & Audio Data | : |
| Frequency Response (-5 dB standard) | 54 Hz – 19 kHz |
| Frequency Response (-5 dB CUT mode) | 100 Hz – 19 kHz |
| Maximum Sound Pressure (SPLmax) | 134 dB (10D), 137 dB (D20), 139 dB (D40/D80/D90) |
| Nominal Impedance | 8 Ω |
| Power Handling Capacity (RMS / Peak 10 ms) | 400 / 1600 W |
| Transducers & Coverage | : |
| Components | 2 x 8" drivers (neodymium magnet) in a dipole arrangement; 1.4" exit compression driver with a 3" diaphragm and wave transformer |
| Nominal Horizontal Dispersion | 120° (controlled down to 500 Hz) |
| Vertical Splay Angle Settings | 0° to 14° in 1° increments |
| Max Cabinets in Vertical Array | Up to 24 loudspeakers |
| Physical Specifications | : |
| Dimensions (H x W x D) | 257 x 630 x 375 mm (10 x 24.8 x 14.8 inches) |
| Weight | 20 kg (44 lb) |
| Connections | 2 x NLT4 F/M or optional NL4 |
