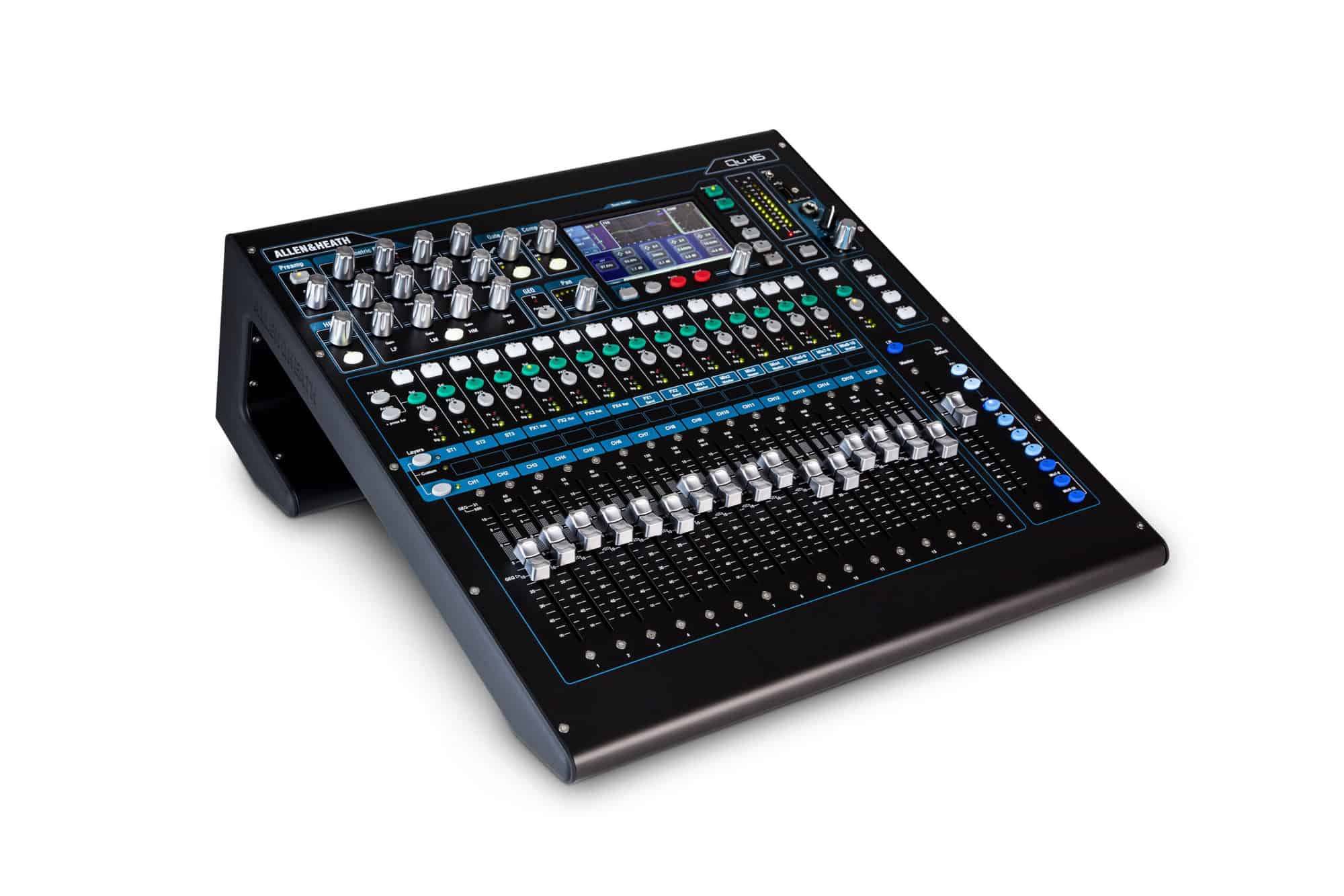

The Allen & Heath Qu-16 is a powerhouse digital mixing console that seamlessly blends analogue intuition with professional digital functionality. Featuring 16 AnaLOGIQ total recall preamps, 17 motorised faders, and a vivid touchscreen, this 19-inch rack-mountable unit delivers class-leading audio clarity ideal for live sound, studio recording, and installations.
Equipped with robust DSP technology ported directly from their flagship iLive and GLD systems, the console provides deep channel control, including parametric EQs, compressors, and four stereo RackFX engines. It also offers modern conveniences like Automatic Mic Mixing, dSNAKE Cat5 expansion for remote stageboxes, and Qu-Drive—allowing for effortless 18-channel multitrack recording straight to a USB drive.
For modern hybrid workflows, the Qu-16 operates as a highly capable 24×22 USB audio interface with full DAW MIDI control capabilities. Whether you are running a complex live gig, recording a band, or streaming content online, this desk provides the precision, total recall, and sonic pedigree necessary to elevate your audio productions.
| Manufacturer | Allen and Heath |
|---|---|

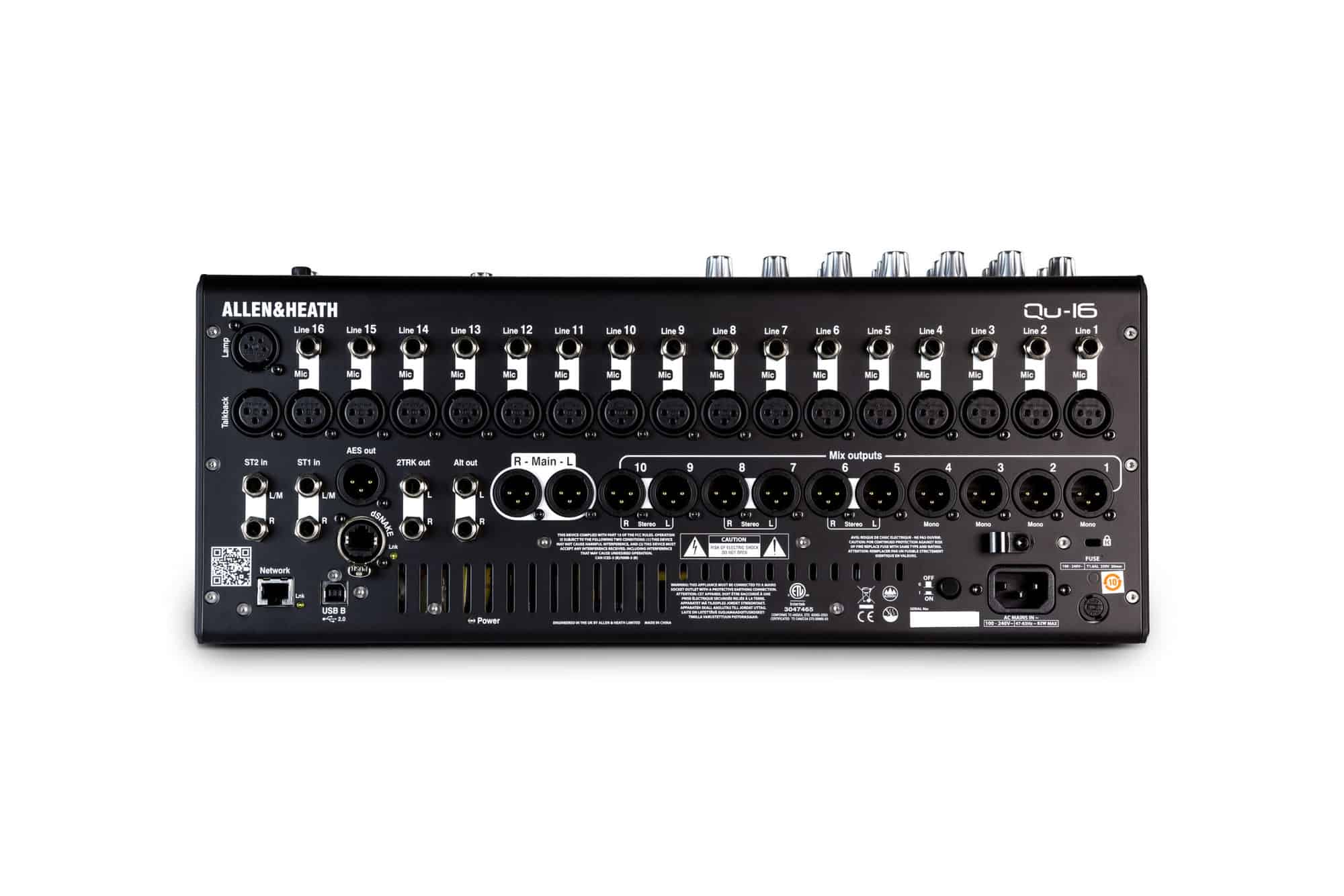

| Inputs & Outputs | : |
| 16 Mono Inputs | XLR/TRS combo jacks with AnaLOGIQ recallable preamps |
| 3 Stereo Inputs | TRS jack inputs (ST1, ST2) and a 3.5mm input (ST3) |
| 12 Mix Outputs | All XLR connections, consisting of 4 mono mixes and 3 stereo mixes, plus the Main LR output |
| Digital Outputs | 2-channel AES digital out |
| Expansion | dSNAKE port for connecting remote digital audio racks (like the AR2412 or AB168) via Cat 5 cable |
| Control & Interface | : |
| Faders | 17 motorized faders (16 channels + 1 master) laid out in layers |
| Touchscreen | 800x480, 16-million-color resistive touchscreen |
| Custom Layer | User-assignable fader strip layout |
| Soft Keys | 4 dedicated, assignable soft keys |
| Signal Processing & Effects | : |
| Channel DSP | Trim, polarity, high-pass filter, gate, parametric EQ, compressor/limiter, and delay on every input channel |
| Master DSP | Graphic EQ (GEQ), parametric EQ, compressor, and delay on Mix outputs |
| Effects (FX) | 4 dedicated stereo FX engines powered by the iLive effects library |
| Groups & Mutes | 4 groups, 4 mute groups, and DCA groups |
| Recording & Playback | : |
| Qu-Drive | Direct 18-track (16 mono + selectable stereo pair) multitrack recording and playback using a USB drive |
| USB Interface | 24x22 USB audio interface for multitrack streaming to/from a Mac or PC |
| DAW Control | MIDI DAW control driver for Mac and PC (emulates Mackie Control/HUI) |
| Software & Ecosystem Compatibility | : |
| Qu-Pad | iPad app for wireless live mixing and control |
| Qu-You | Personal monitoring app for iPhone and iPod Touch |
| ME Personal Mixing | Compatible with the Allen & Heath ME-1 and ME-500 personal monitor systems |
