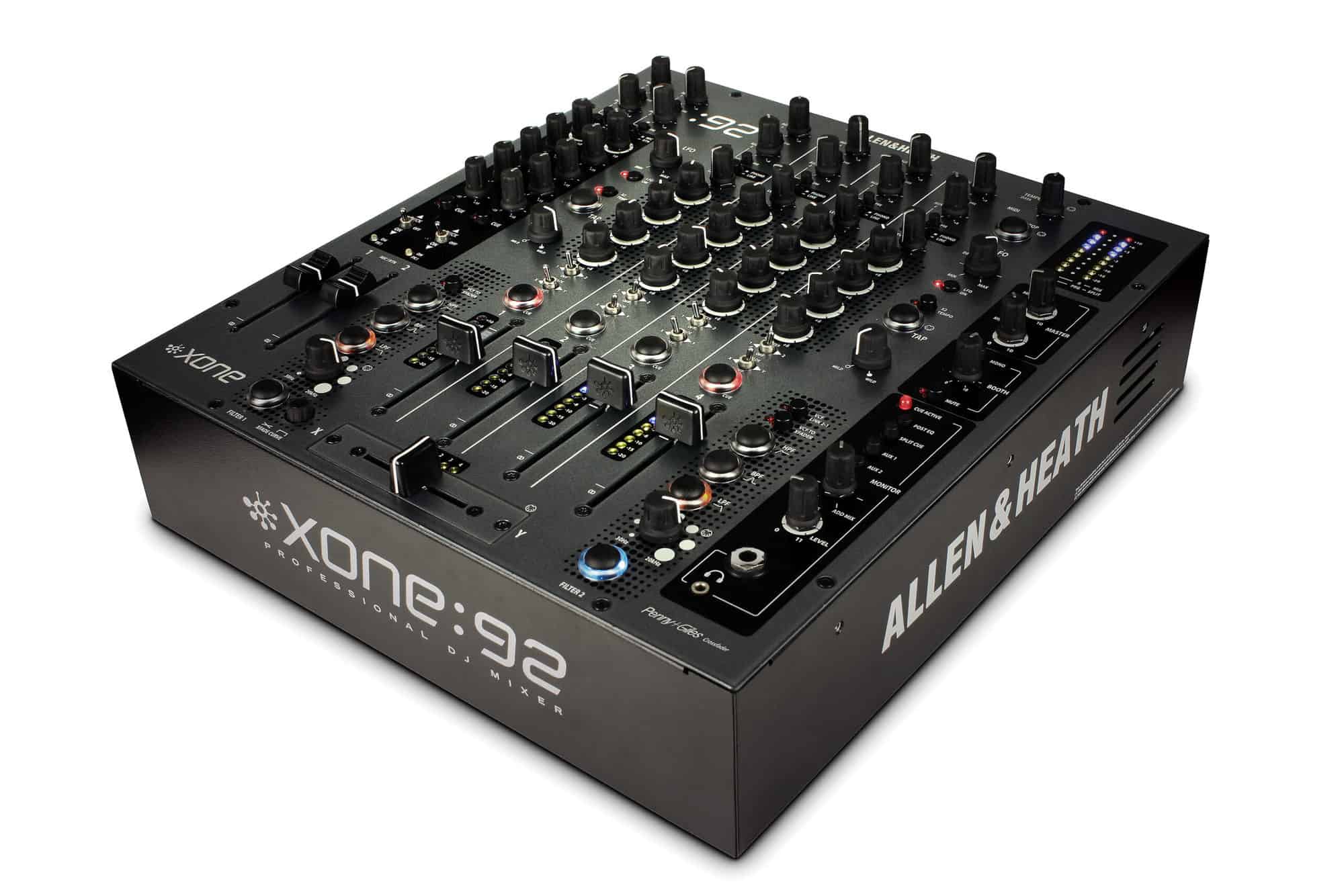

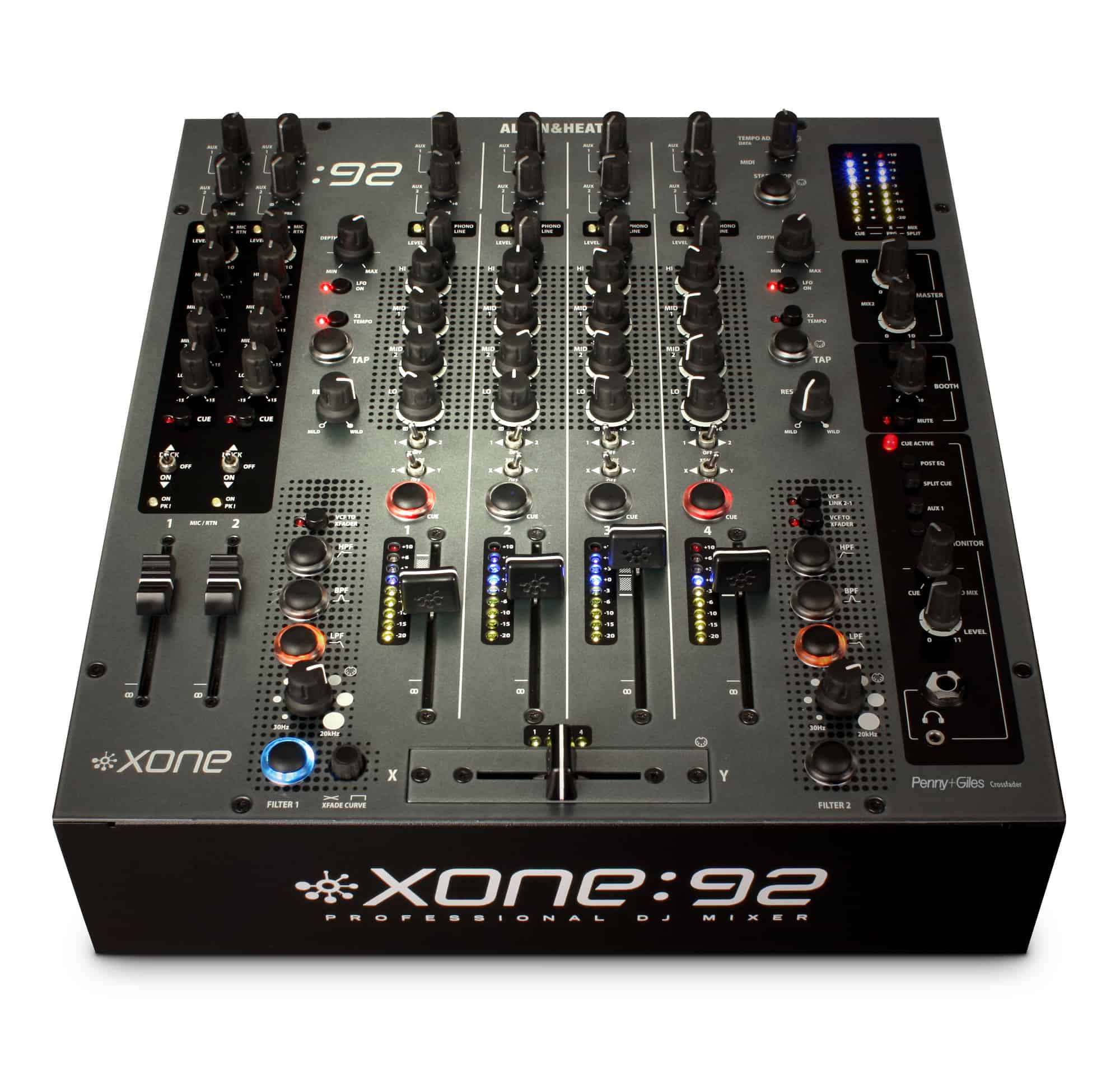

The Allen & Heath Xone:92 is the definitive, long-time industry-standard analogue DJ mixer. Revered for its expansive, warm sound, it features six dual-stereo channels, robust construction, and an iconic layout that remains a permanent fixture in the world’s top superclubs and festivals.
At the heart of the mixer’s legendary status is its peerless 4-band EQ, which provides total kill on the High and Low frequencies and extensive frequency control. It is also equipped with the innovative dual Voltage Controlled Filter (VCF) system alongside independent LFOs, allowing for deep, sweeping, and tactile live sonic manipulation.
Designed for ultimate creative freedom, the Xone:92 boasts MIDI connectivity for external software and sequencers, two stereo FX sends, and a custom mini innoFADER® Pro crossfader for ultra-smooth mixing. It bridges the gap between analogue warmth and digital control.
| Manufacturer | Allen and Heath |
|---|---|
| Core Product Attributes | : |
| Channel Configuration | 6 dual stereo channels (4 Phono/Line, 2 Mic/Line or Stereo Return) |
| EQ Section | Precision 4-band EQ on channels 1–4, featuring total kill on HF and LF, wide Q for cuts, and narrow Q for boosts |
| Filter System | Dual independent stereo analogue Voltage Controlled Filters (VCF) with frequency and resonance controls, paired with two LFOs for deep manipulation |
| Faders & Crossfader | 60mm linear VCA channel faders with curve options, plus a user-replaceable crossfader (Mini Innofader Pro on MK2) |

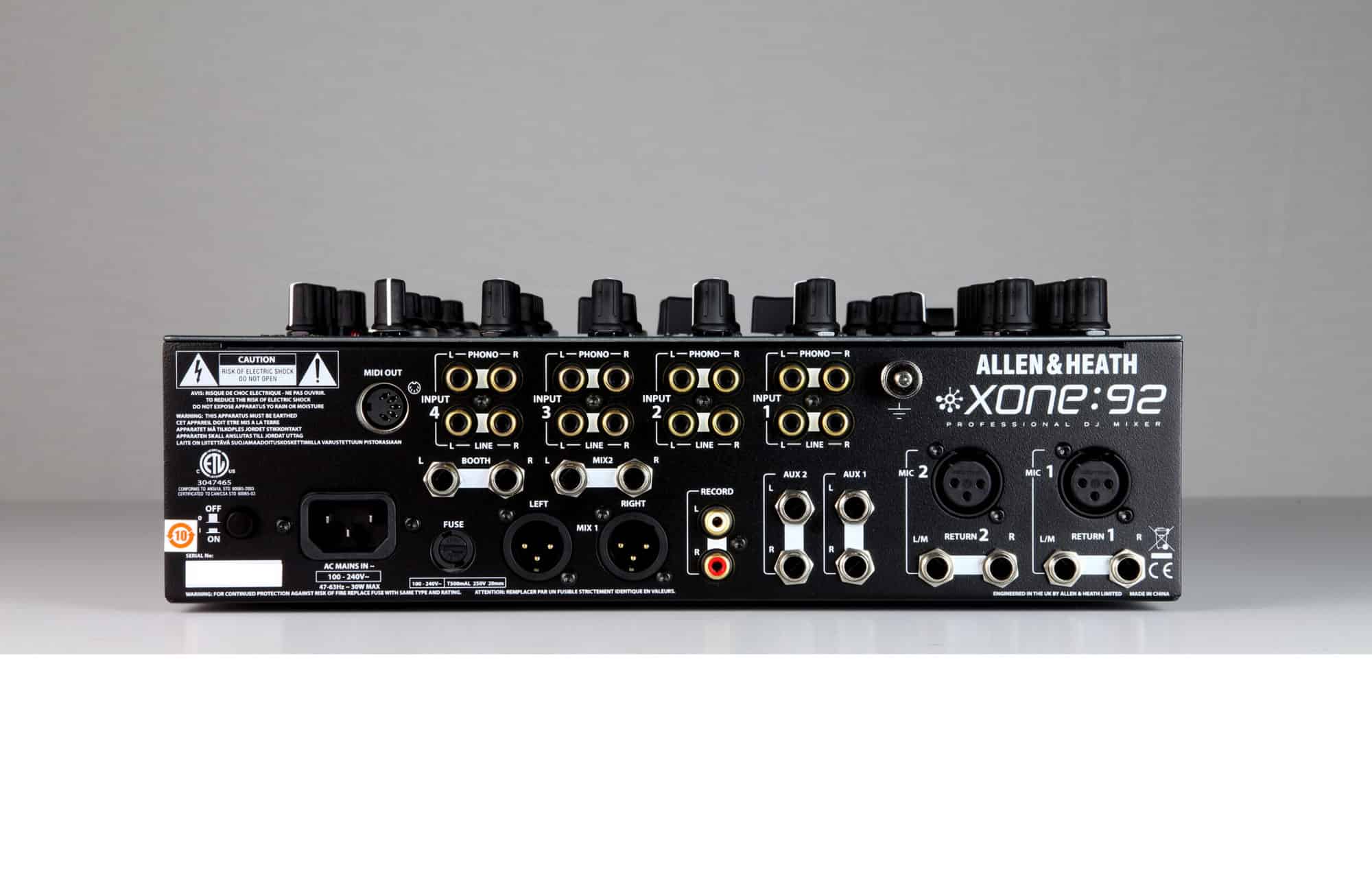

| Connectivity | Inputs: 4x Phono (RCA), 4x Line (RCA), 2x Mic/Return (XLR/TRS) Outputs: 2x Stereo Mix (XLR/TRS), Booth (TRS), Record (RCA), and 2x Aux Sends |
| MIDI Capabilities | Fully assignable MIDI controls output values from 6 sources (including the crossfader and LFOs) for external software or gear |
| Monitoring | Intelligent cue system allowing pre/post EQ monitoring, split cue, and mix-to-cue balance, alongside dual headphone outputs (\(1\frac{1}{4}\)" and 3.5mm) |
| Build & Power | All-analogue circuitry with universal internal power supply (100-240V AC) |
