Create stunning multi camera live production with the world’s most advanced production switchers! ATEM switches between SD, HD or Ultra HD video standards so you can connect a wide range of video sources such as cameras, disk recorders and computers.
You get powerful features such as chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view and more! The advanced ATEM 1 M/E Production Studio 4K features extra inputs, full motion DVE, stinger transitions, larger media pool with full motion clips and 3 auxiliary outputs.
Take your live production beyond broadcast quality! ATEM Production Studio 4K has all the features you need for the most innovative live concerts, sporting events, theatre productions, conferences and more! When you’re doing live events with super large high resolution screens, then simply switch your ATEM Production Studio 4K to Ultra HD for incredible quality. Many live events now use massive high resolution LED screens and projectors and now you can drive those screens in full resolution.

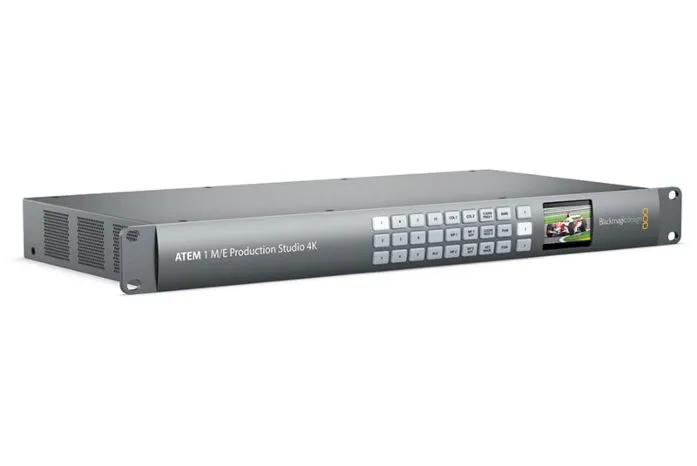

The Blackmagic ATEM 1 M/E Production Studio 4K is a live event multicamera production switcher with 10 individual Ultra HD inputs built into a 1 RU chassis. This unit comes with built-in support for NTSC/PAL/HD and 4K UHD video formats, the switcher connects to a wide range of cameras and sources, delivering a single program stream in UHD 4K, HD, or SD video. All of this functionality is performed in real-time with no rendering required.
Furthermore, this switcher features a reference video input for synchronizing the switcher to other equipment using tri-level or black burst sync. Each input also features a frame synchronizer, which allows you to use cameras that do not feature genlock as well as input video from computer sources.

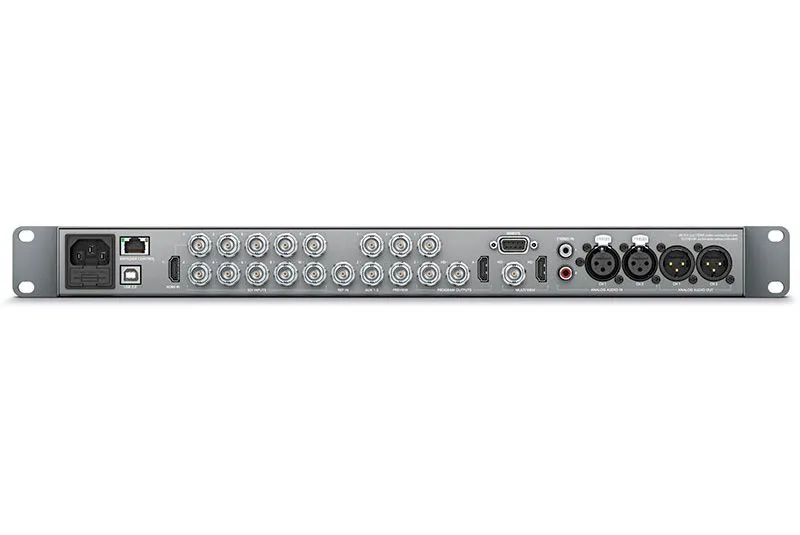

The switcher provides 8 x video outputs that are always active. It features 2 x SDI and 1 x HDMI program output, both of which deliver UHD/HD/SD, with three pass-through (AUX) UHD/HD/SD outputs that can deliver a clean program feed without any downstream effects. The ATEM 1 M/E Production Studio 4K also features a down-converted HD output for monitoring on an SDI-equipped HD monitor.
Multi-view monitoring is 1080i only over dedicated SDI or HDMI output, and multi-view allows you to view the program, preview, and eight live sources at the same time. The switcher features built-in luma and chroma keyers for real-time effects and composites in Ultra HD, with 10-bit processing. 2 x downstream keyers allow you to use two graphics/logos/titles/lower thirds from up to twenty stored graphics in a wide variety of formats.
A built-in 12-channel audio mixer handles the embedded HDMI and SDI audio from the 10 active video inputs, as well as audio from the balanced or unbalanced analog audio inputs to provide you flexibility and creative audio options. Audio output is embedded in the SDI and HDMI streams, as well as available via balanced audio outputs. Either a Mac or Windows PC running the included.

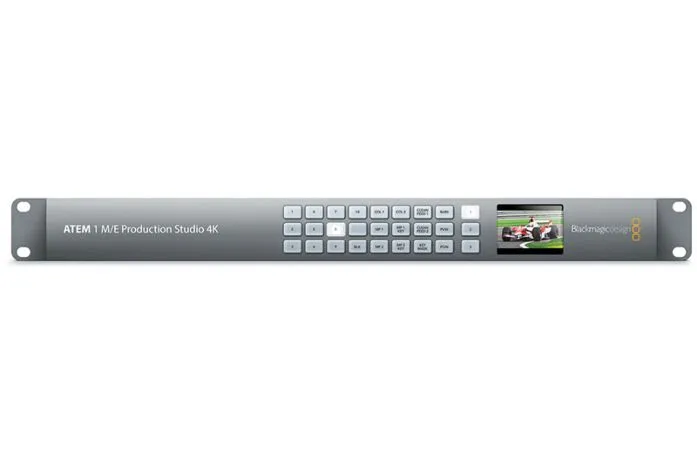

ATEM software controls the switcher’s operation and settings. For those who like the feel of a physical control panel, the available ATEM ME 1 and ME 2 Broadcast Panels, connected via the Ethernet port, also control all the features of the switcher. Illuminated front-panel buttons allow you to locally select the AUX output, while a 2″ LCD screen built into the front of the unit allows you to see the AUX output for instant confirmation of the correct output.
| Manufacturer | Blackmagic |
|---|---|
| Power | - Power I/O: 2 x IEC C14 Input - Device: 100 to 240 VAC |
| Power Consumption | 300 W |
| Cable Type | Power |
| Effect Types | 1 x DVE and Stinger 4 x Chroma Key 7 x Luma Key |
| Downstream Keys | 2 x Alpha |
| Generators | 7 x Pattern 2 x Color |
| Latency | 2 Lanes |
| Video Inputs | 10 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) 1 x HDMI |
| Audio Inputs | 2 x XLR 3-Pin 1 x 2RCA |
| Video Outputs | 2 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Program) 1 x BNC (HD-SDI) (Program) 1 x HDMI (Program) 1 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Preview) 3 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Pass-Through) |
| Audio Output | 2 xXLR 3-Pin |
| Multi-View Output | 10-Way Multiview via SDI and HDMI |
| Other I/O | 1 x BNC Blackburst, Tri-Level Sync 1 x RJ45 LAN 1 x USB-B 1 x DE-9/DB-9 RS-422 |
| Input Video Formats | SDI (10bit): 4K UHD at 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/29.97/50/59.94 fps 1080i 50/59.94 fps 720p 50/59.94 fps PAL 25 fps NTSC 29.97 fps |
| HDMI | 4K UHD at 23.98/24/25/29.97 fps 1080p 50/59.94 fps 1080i 50/59.94 fps 720p 50/59.94 fps PAL NTSC |
| Output Video Formats | SDI (10bit) UHD 4K at 23.98/24/25/29.97/30 fps 1080p 29.97/50/59.94 fps 1080i 50/59.94 fps 720p 50/59.94 fps Video Standard Compliance: SMPTE 259M/292M PAL (768 x 576) NTSC HDMI (10bit) UHD 4K at 23.98/24/25/29.97 fps 1080p 50/59.94 fps 1080i 50/59.94 fps 720p 50/59.94 fps PAL (768 x 576) NTSC |
| Screen Size | 2 |
| Panel Type | LCD |
| Weight | 2.6 kg / 5.73 lbs. |
| Dimensions | 48.26 x 23.5 x 4.32 cm / 19 x 9.25 x 1.7" |
| Additional Info | perating Temperature 0 to 40 C / 32 to 72 F Storage Temperature: -20 to 60 C / - 4 to 140°F Operating System Compatibility: macOS 10.7 or Later macOS 10.8 or Later Windows 7 Windows 8 1 RU form factor |
