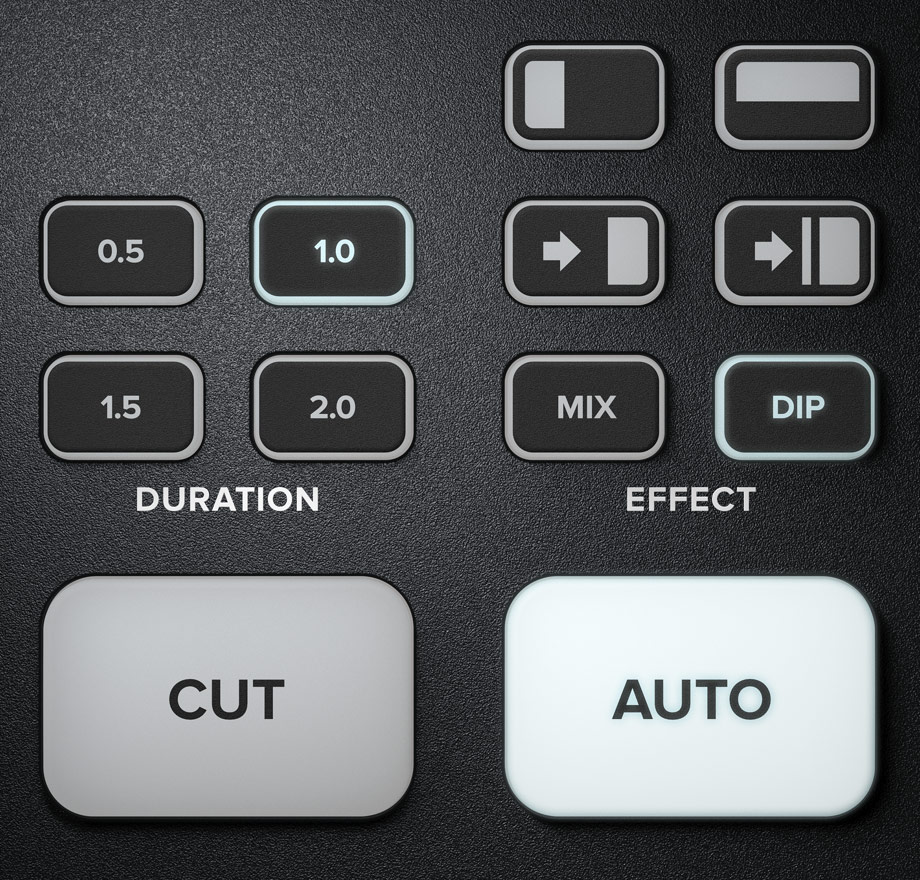

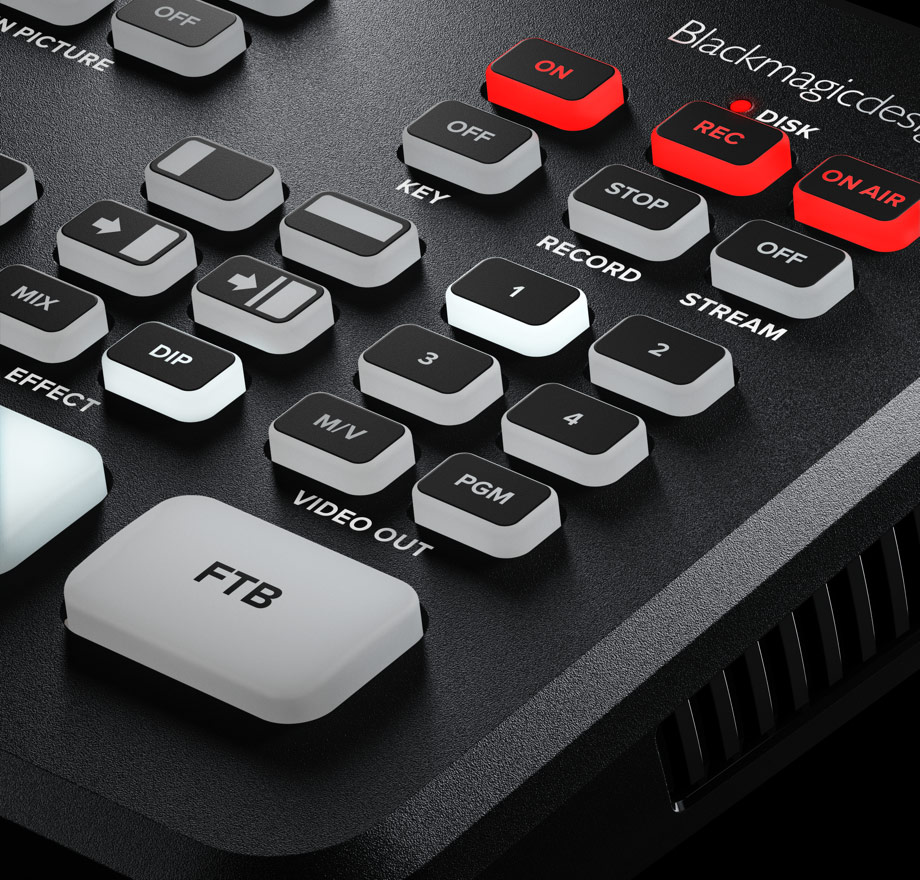

ATEM Mini’s compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it’s possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! You also get buttons for record and streaming control, as well as output selection buttons that let you change the video output between cameras, program and multi-view. On the rear panel there are HDMI connections for cameras or computers or even gaming consoles, extra microphone inputs, USB for webcam out plus an HDMI “aux” output for program video.
To ensure maximum compatibility, all ATEM Mini models feature USB that operates as a simple webcam source. That means you can plug into a computer and get working with any video software! The software is tricked into thinking the ATEM Mini is a common webcam, but it’s really a live production switcher. That guarantees full compatibility with any video software and in full resolution 1080 HD quality. Choose any software you like, such as Zoom or Microsoft Teams for a new way to do presentations with a professional multi camera broadcast quality style! The ATEM Mini webcam output also works with streaming software such as Open Broadcaster, XSplit Broadcaster and more!
| Manufacturer | Blackmagic |
|---|---|
| HDMI Inputs | 4 |
| Total Outputs | 2 |
| Total Aux Outputs | 1 |
| Total Audio Inputs | 2 x 3.5mm stereo mini jack |
| Total Audio Outputs | None, embedded audio only |
| Timecode Connection | None |
| HDMI Video Inputs | 4 x HDMI type a, 10-bit HD switchable, 2 channel embedded audio |
| Video Input Re-Sync | On all 4 HDMI inputs. |
| Frame Rate and Format Converters | On all 4 HDMI inputs |
| HDMI Program Outputs | 1 |
| Ethernet | Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. |
| Computer Interface | 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. |
| HD Video Input Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| HD Video Output Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD Video Standards | None |
| Video Sampling | 4:2:2 YUV |
| Colour Precision | 10-bit |
| Colour Space | Rec 709 |
| HDMI Input Resolutions from Computers | 1280 x 720p 50Hz, 59.94Hz and 60Hz, 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz, 1920 x1080i 50 and 59.94Hz 60Hz |
| Colourspace Conversion | Hardware based real time |

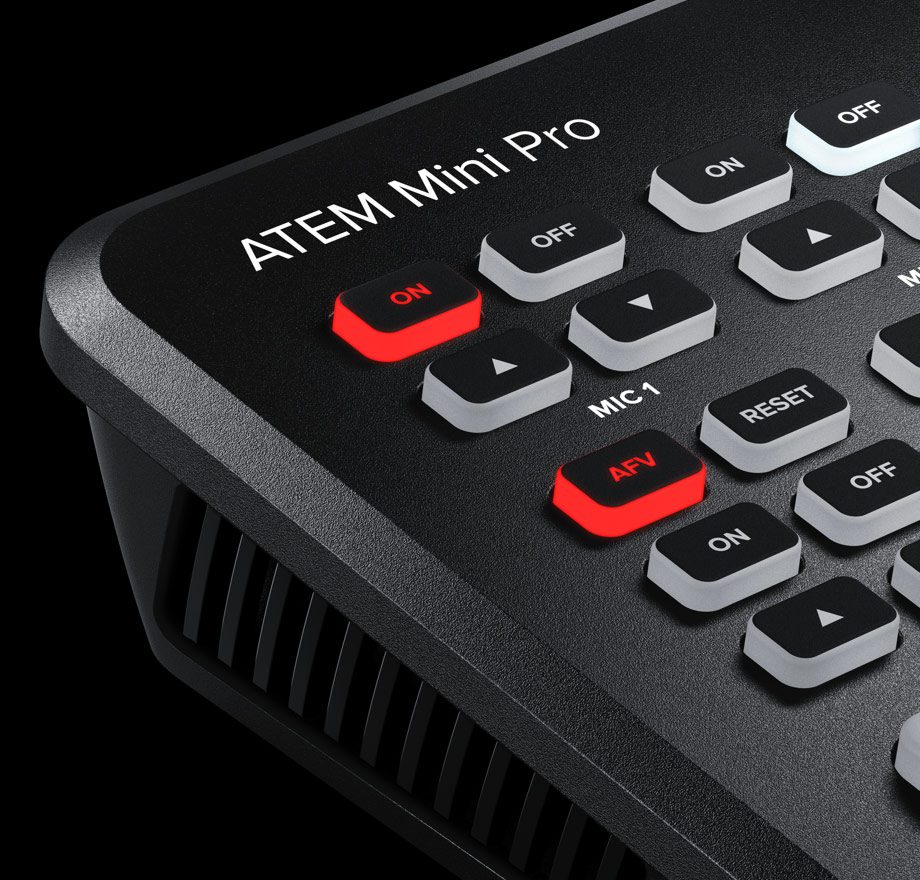

| Audio Mixer | - 6 input x 2 channel mixer. - Selectable On/Off/Audio-Follow- Video per channel plus separate gain control per channel. - Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
| Upstream Keyers | 1 |
| Downstream Keyers | 1 |
| Advanced Chroma Keyers | 1 |
| Linear/Luma Keyers | 2 |
| Transition Keyer | DVE only |
| Total Number Of Layers | 5 |
| Pattern Generators | 1 |
| Colour Generators | 2 |
| DVE with Borders And Drop Shadow | 1 |
| Interface | Minimum monitor resolution of 1366 x 768. |
| Direct Streaming | ATEM Mini Pro supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) |
| Direct Recording | 1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard |
| Media Format | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems |
| Multi View Monitoring | 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. |
| Multi View Video Standard | HD |
| Operating Systems | Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 10 64 bit only |
| Power Supply | 1 x External 12V power supply |
| Power Usage | 36W |
| Operating Temperature | 5° C to 40° C (41° - 104° F) |
| Storage Temperature | -10° to 60° C (14° to 140° F) |
