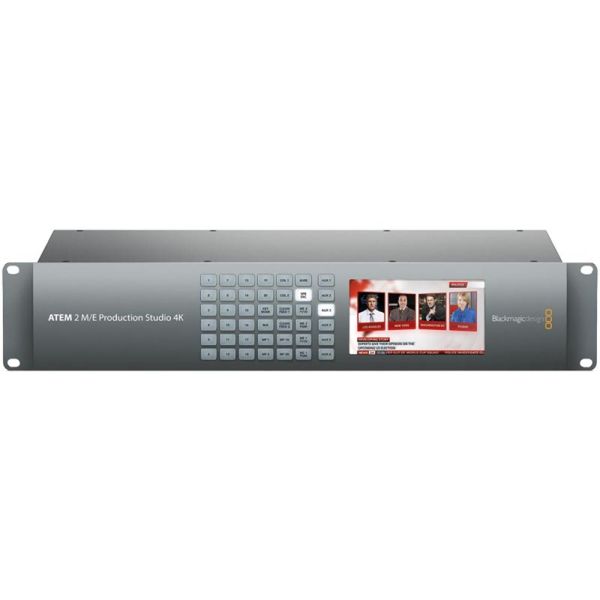

The Blackmagic Design ATEM 2 M/E Production Studio 4K is an excellent live event tool. It gives you 20 inputs to plug in many cameras and computers at once. It also features SuperSource—a multi-layer visual effect. This lets you show multiple people on the screen at the same time for panels or interviews.
This switcher is great for big shows because it has two mix effects engines. You can send one camera mix to a large projector and a totally different mix to a live stream. Its six separate auxiliary outputs let you easily route custom video feeds to displays across your venue.
Here are the three main benefits for your event:
It features 20 video inputs 20 x 6G-SDI and 1 x HDMI 4K that allow you to mix standard definition, high definition, or Ultra HD 4K sources.Built-in
Each input has its own frame synchroniser. You can connect any camera or computer instantly without worrying about complicated lock-in signals.
It includes a ‘SuperSource’ engine that allows you to display up to \(4\) independent video windows at once on screen
| Manufacturer | Blackmagic |
|---|---|
| Dimensions | 482mm x 235mm x 90mm |
| Digital Video Effects Position | resize, rotate and scale in real time |
| Switcher | SD, HD and Ultra HD |
| 2 x Multi View | 16 sources, 2 x previews and program on HD-SDI and HDMI outputs |

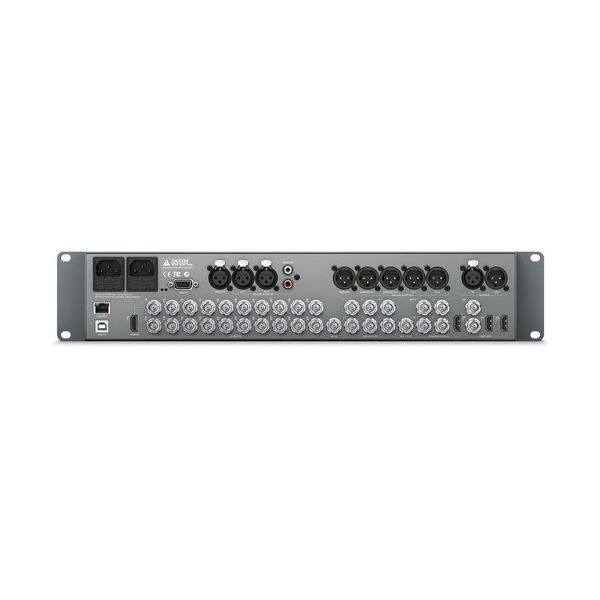

| Inputs | 20 x 6G-SDI and 1 x HDMI input. All inputs feature auto re-sync |
| 2 x 6G-SDI program outputs | 1 HDMI 4K program out and 1 down converted HD-SDI program out |
| Media Pool Graphics Storage | for 32 RGBA Ultra HD stills and 180 frame Ultra HD clips |
| Built In Full Motion 2D DVE | with position, scale, resize and rotate features |
| Built in SuperSource | Allows 4 DVE’s and 4 keys layered as an independent video source |
| Media Players | 2 |
| Keyers | 4 upstream keyers include chroma keyer and 2 downstream keyers are included |
| 6 auxiliary outputs | include front panel aux switching buttons and LCD screen for viewing |
| Built In Audio Mixer | live mixes embedded audio from all video inputs and independent audio inputs |
| Ethernet | connection for control panel connection. Mac and Windows control panel software included |
