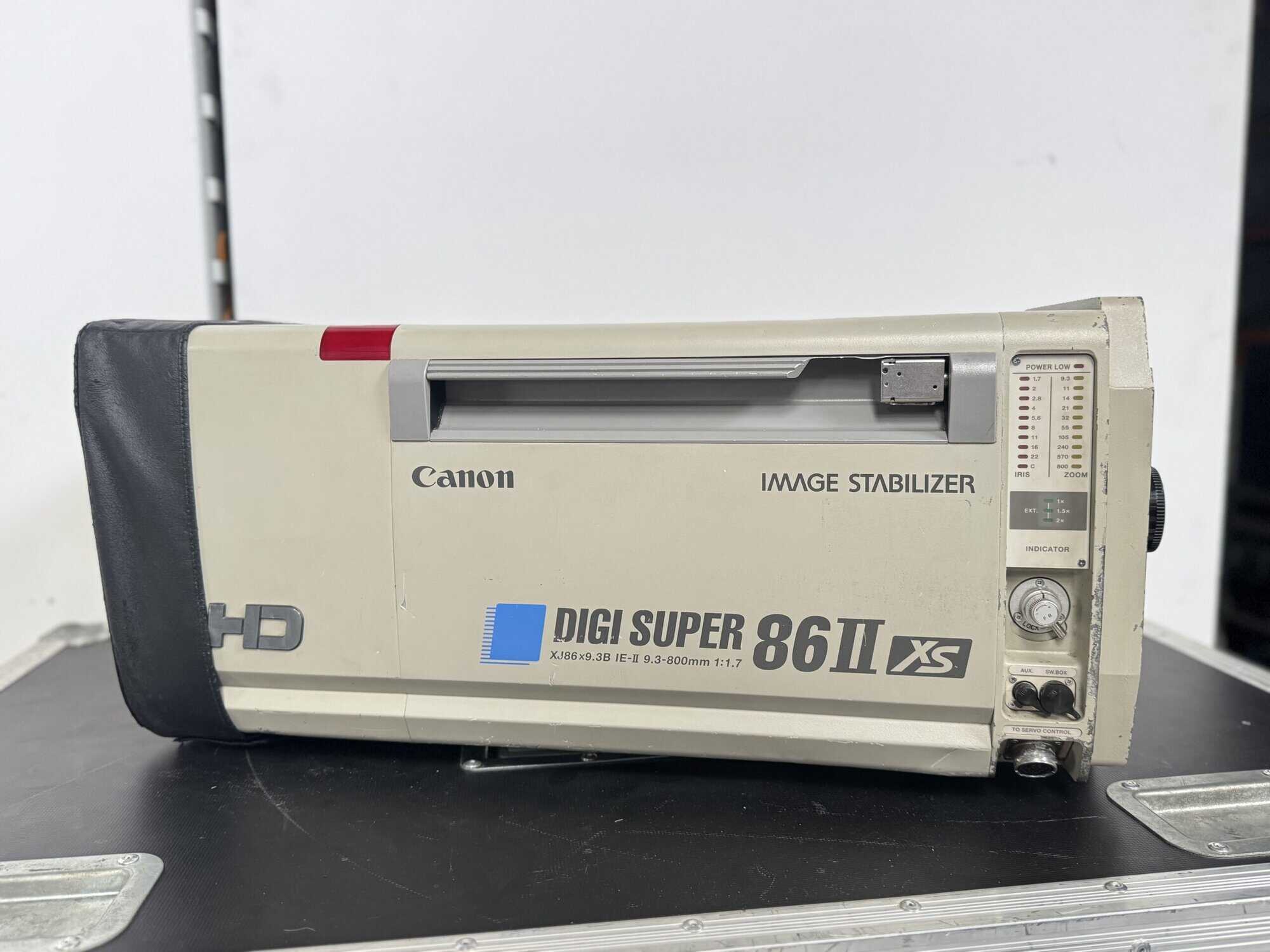

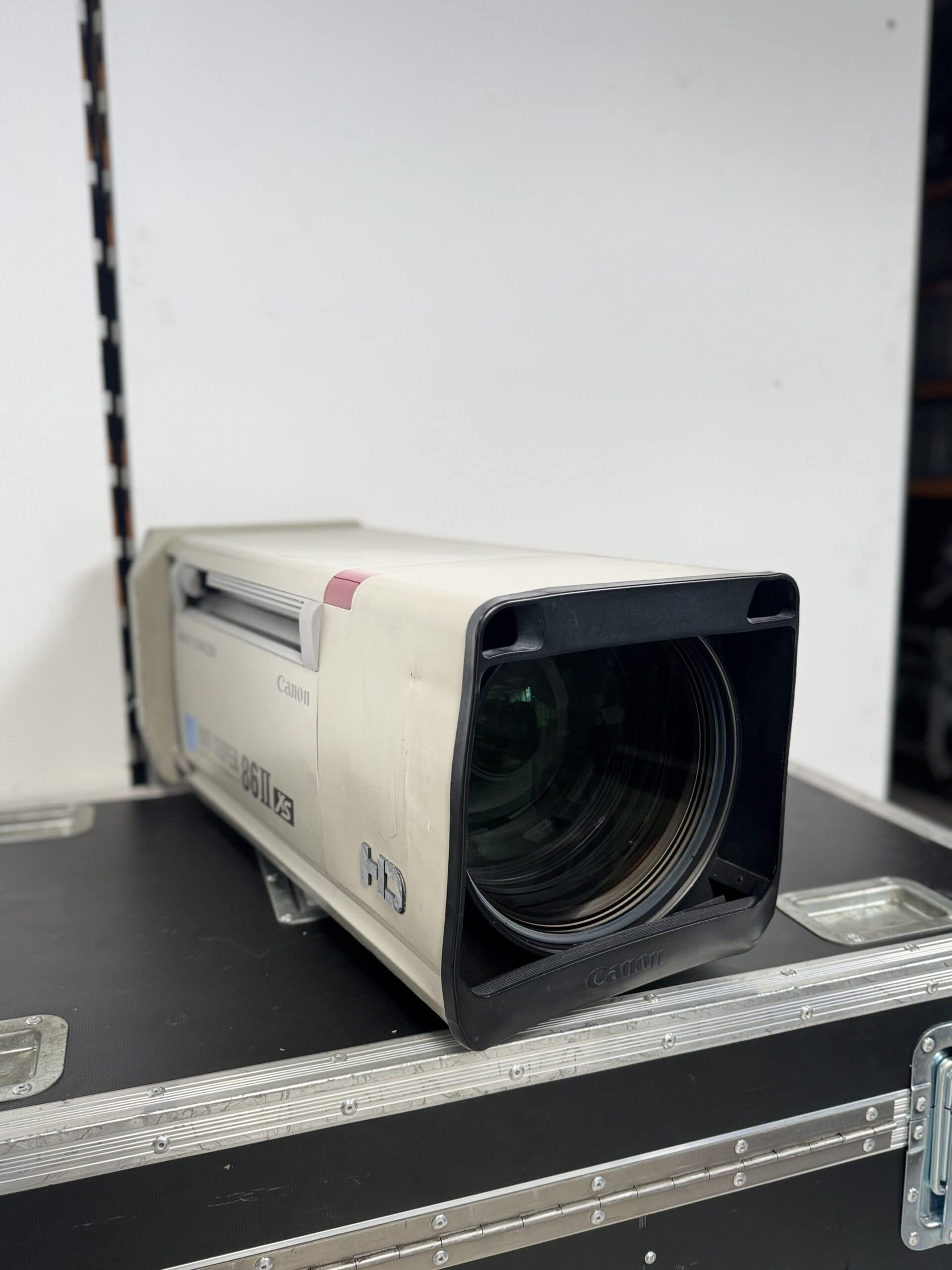

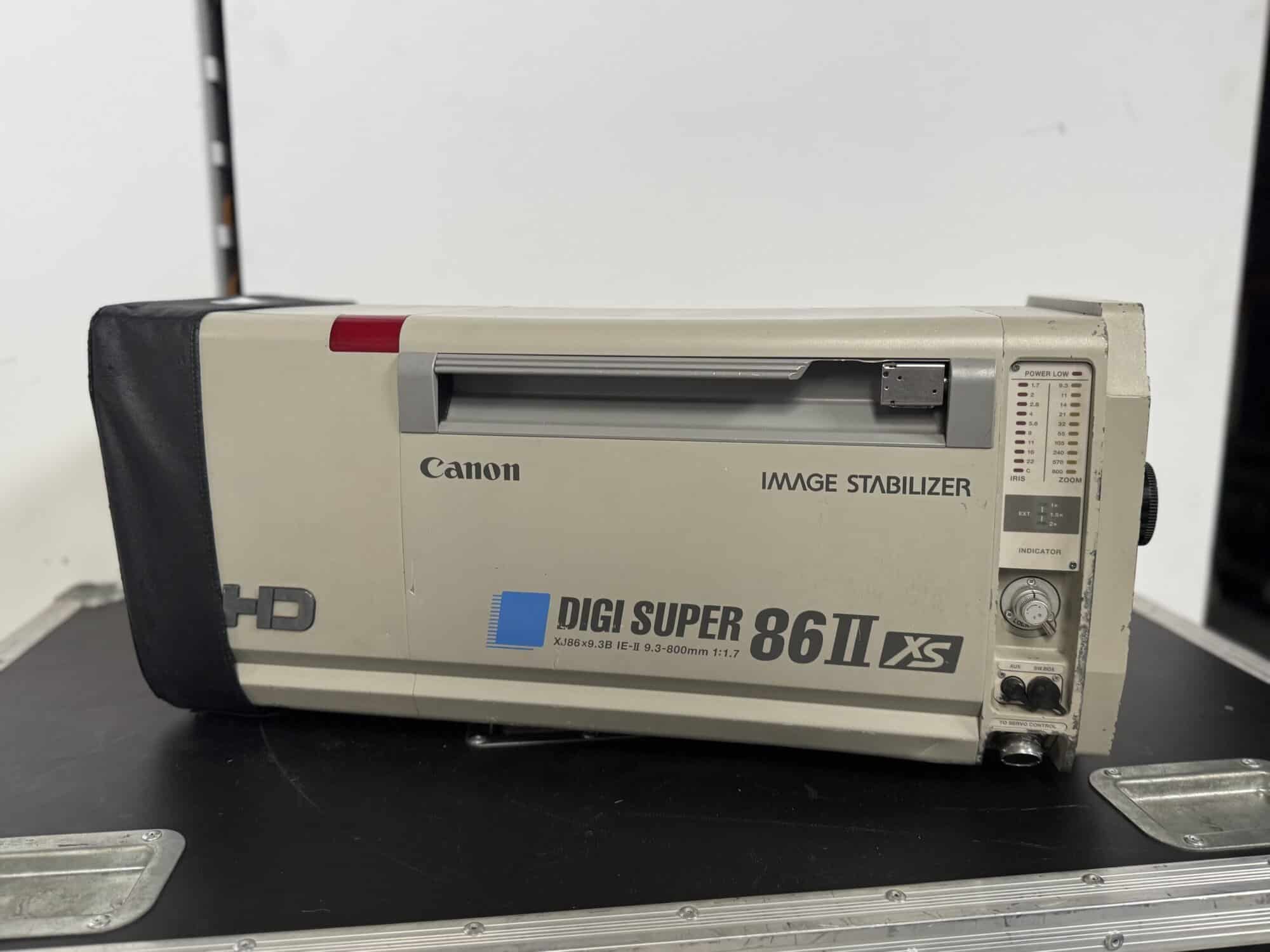

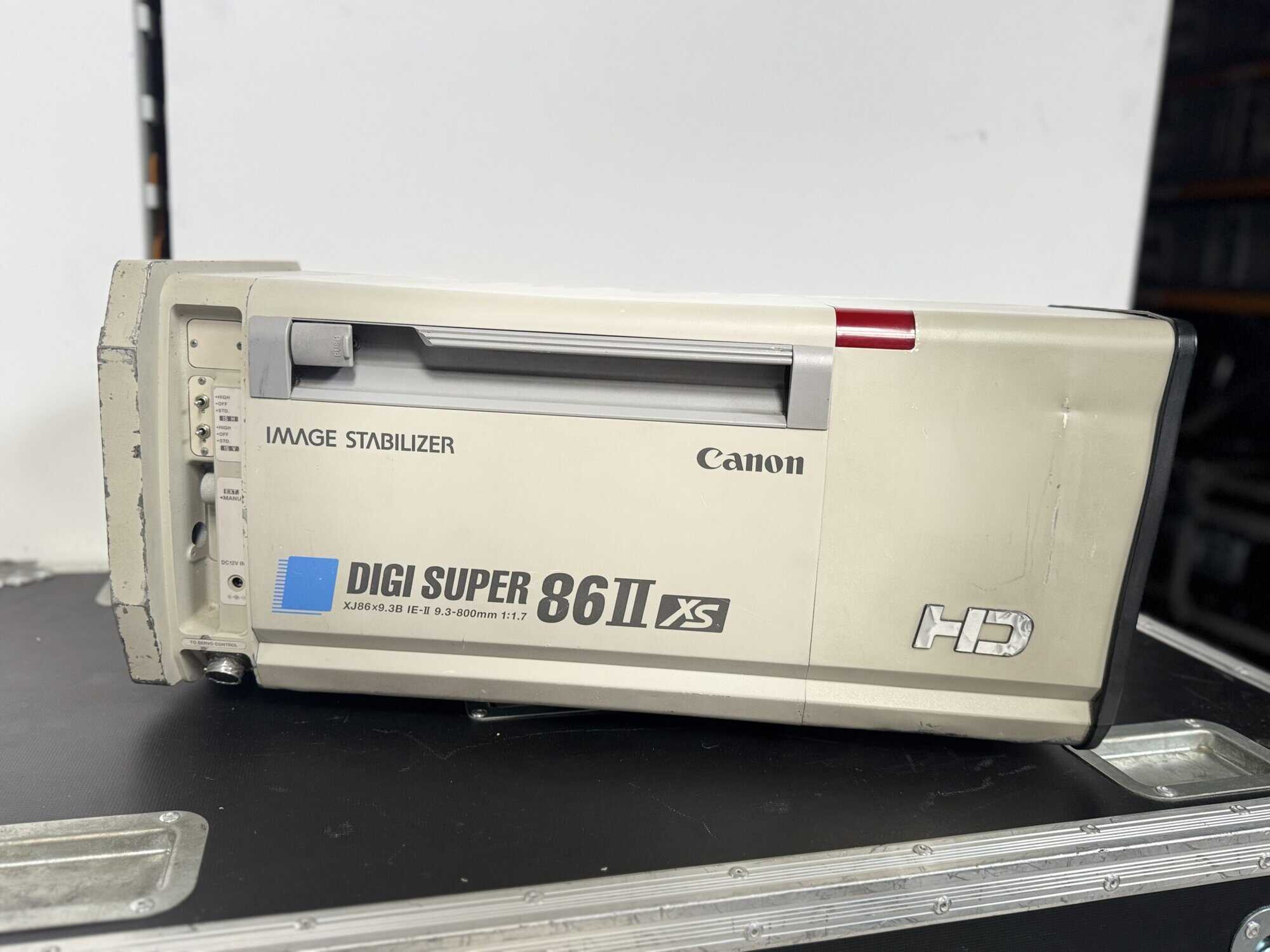

The DIGI SUPER 86xs series offers the second longest zoom ratio among the family of six HDTV field lenses presently offered by Canon. There are two lenses in this category, the XJ86x9.3BIE-D wide-angle and the companion longer telephoto XJ86x13.5BIE-D that further extend the flexibility
The DIGI SUPER 86xs series has become the most popular long field lens in the emerging fleets of HDTV mobile television facilities. Canon harnessed the best in optical, mechanical, and digital technologies to implement a long zoom lens that remains modest in its size and weight. Both lenses in the DIGI SUPER 86xs utilize an exceptional built-in image stabilization system to support such long zoom ratio operations.
These two lenses are intended for mobile truck operators, broadcasters, and major venue operators having as their foremost priority the greatest telephoto flexibility for high definition sports and entertainment event coverage. It can equally service the special needs of government (homeland…
| Angular field of view (with Extender) | 4:3 Aspect Ratio (8.8 x 6.6mm) 50.6° x 39.1° at 9.3mm 0.63° x0.47° at 800mm 26.6° x 20.1° at 18.6mm(2.0x) 0.32° x 0.24° at 1600mm(2.0x) |
|---|---|
| Built-in Extender | 2.0x |
| Control System | Digital Full Servo |
| Dimensions | 250.6 x 255.5 x 610.7 mm |
| Focal Length | 9.3 - 800 mm (18.6 - 1600 mm with 2x extender) |
| Macro | No |
| M.O.D. (Minimum Object Distance) | 3.0 meters |
| Maximum Aperture | f/1.7 (9.3-332mm) / f/4.1 (800mm) |
| Maximum Relative Aperture (with extender) | 1:1.7 at 9.3~340mm 1:4.0 at 800mm 1:3.4 at 18.6~680mm (2.0x) 1:8.0 at 1600mm (2.0x) |
| Minimum Object Distance (M.O.D.) | 3.0m from front lens vertex |
| Object Dimensions at M.O.D. (with Extender) | 4:3 Aspect Ratio (8.8 x 6.6mm) 253.9 x 190.4cm at 9.3mm 2.8 x 2.1cm at 800mm 127.0 x 95.2cm at 18.6mm (2.0x) 1.4 x 1.1cm at 1600mm (2.0x) |
| Range of Focal Length (with Extender) | 9.3~800mm 18.6~1600mm (2.0x) |
| Sensor Format | 2/3" (B4 Mount) |
| Size | (W x H x L) - 250.6 x 255.5 x 591.5mm |
| Stabilization | Built-in Optical Image Stabilizer |
| Weight | 24.5 kg |
| Zoom Ratio | 86x |
| 16:9 Aspect Ratio | (9.59 x 5.39mm) 276.4 x 155.5cm at 9.3mm 3.1 x 1.7cm at 800mm 138.2 x 77.8cm at 18.6mm (2.0x) 1.6 x 0.9cm at 1600mm (2.0x) |
