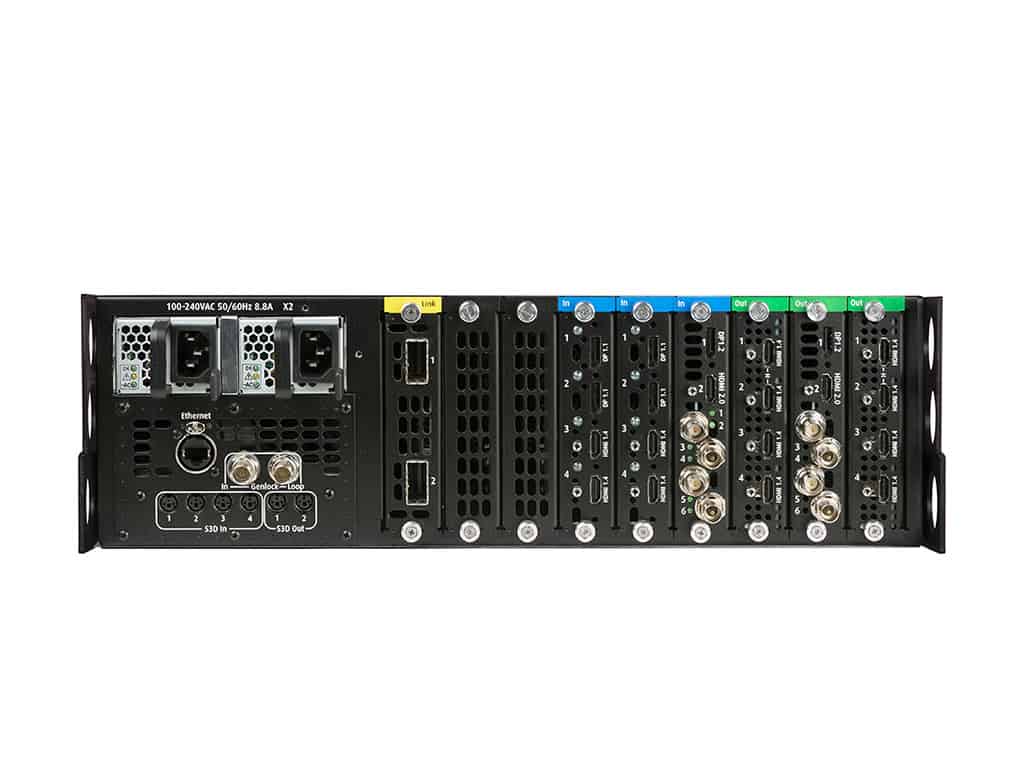

The Barco S3 4K Tricombo is a powerful video switcher for live events. It handles screens, cameras, and laptops effortlessly.
It supports full 4K at 60Hz. It displays crisp video and sharp slides on giant venue screens.
It stitches images from multiple projectors together seamlessly. This creates one massive, smooth picture across a wall.
It can mix many small pictures at the same time. You can show sponsor logos, speaker cameras, and presentation slides on one display.
| Manufacturer | Barco |
|---|---|
| Physical & Power Specifications | : |
| Dimensions | 13.26 cm (5.22 inches) H x 43.2 cm (17 inches) W. Depth is 54 cm (21.33 inches) |
| Weight | 24 kg |
| Power | 100-240 VAC, 50/60Hz, 826 Watts. Ships with dual, redundant, hot-swappable power supplies |
| Noise Level | Max 51.3 dB average with fans at 100% (software managed based on operating temperature) |
| Control & Expansion | : |
| Control | Uses the cross-platform Event Master Toolset software for step-by-step setup. |
| Expansion | Easily scale for larger shows. You can link multiple units together (up to 7 additional S3-4K chassis, an E2, or up to 4 EX chassis) using proprietary links to expand inputs, outputs, and layers |
| Video Inputs & Outputs | : |
| Inputs | 12 total HD inputs across 3 cards. It supports up to 3x 4K inputs, including 4x SD/HD/3G SDI, 4x HDMI 1.4a, and 4x DisplayPort 1.1 |
| Outputs | 12 total HD outputs across 3 output cards (can also be configured as up to 3x 4K outputs) |
| Multiviewer | 2 dedicated Multiviewer outputs (HDMI 1.4a) to monitor all inputs and outputs. |
| Processing & Layers | : |
| Live Effects Canvas | Up to 20 megapixels in Preview/Program mode or 40 megapixels in Program-only mode. |
| Layer Allocation | Highly flexible. Supports 4 mixable PiP (Picture-in-Picture) or key layers, or 8 single scalable PiP/key layers per screen. |
| Effects | Borders (hard, soft, halo), drop shadows, colour effects, strobe, and H&V flip. |
