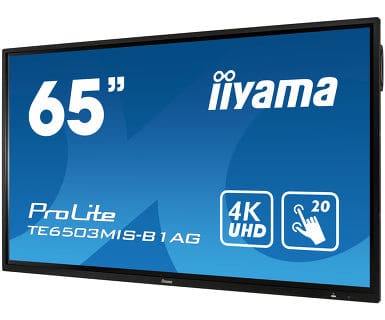

The high-quality commercial IPS LCD screen with 4K UHD resolution (3840×2160 – 8.3 megapixel), 350cd/m2 and a contrast ratio of 1200:1 provides vibrant, detailed and high-quality images from anywhere in the class- or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen is equipped with an all-metal bezel and 3mm thick hardened glass to ensure long durability in high-use environments, such as classrooms or meeting rooms.

Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM001) and the ScreenSharePro app.

DISPLAY CHARACTERISTICS:

Design: Thin bezel

Diagonal: 65″, 163.9cm

Panel:IPS Direct LED, AG coated glass

Native resolution: 3840 x 2160 (8.3 megapixel 4K UHD)

Aspect ratio: 16:9

Brightness: 350 cd/m² typical

Static contrast 1200: 1 typical

Light transmittance: 88%

Dynamic contrast: 4000:1

Response time (GTG): 8ms

Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support: 1.07B 10bit

Horizontal Sync: 30 – 80kHz

Viewable area W x H: 1430 x 806mm, 56.3 x 31.7″

Pixel pitch: 0.372mm

Bezel colour and finish: black, matte

TOUCH

Touch technology: infrared

Touch points: 20 (HID, only with supported OS)

Touch accuracy: (+-2mm)

Touch method: stylus, finger, glove

Touch interface: USB

Supported operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

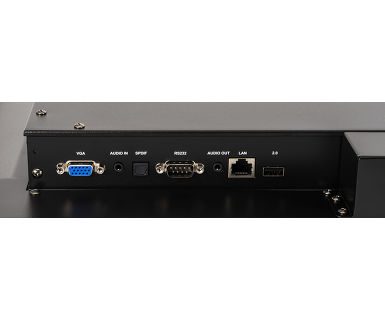

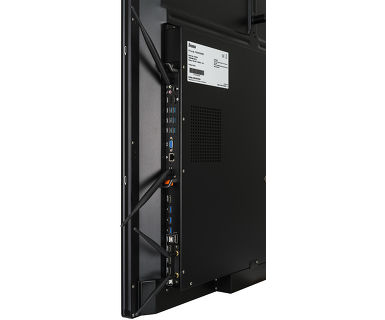

INTERFACES / CONNECTORS / CONTROLS

Analog signal input: VGA x1 (max. 1920×1080 @60Hz)

Digital signal input: HDMI x3 (max. 3840×2160 @60Hz (YUV420))

DisplayPort x1: (max. 3840×2160 @60Hz)

Audio input: Mini jack x1

Monitor control input: RS-232c x1

RJ45 (LAN) x1: (Internet for Android only)

Digital signal output: HDMI x1 (2.0, 3840×2160 @60Hz)

Audio output: S/PDIF (Optical) x1 / Mini jack x1 / Speakers 2 x 10W (max)

HDCP: yes

USB ports x5: (media playback / peripherals / storage – top: 1x v.3.0 (webcam), bottom: 1x v.2.0, right side: 3x v.3.0)

FEATURES

Integrated software: iiWare 8.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro for wireless connection with Windows/iOS/Android devices.

WiFi: yes

Hardware: Dual core A73+A53 CPU, Quad core Mali G51 GPU, 4 GB RAM, 32 GB internal memory, WiFi module (OWM001)

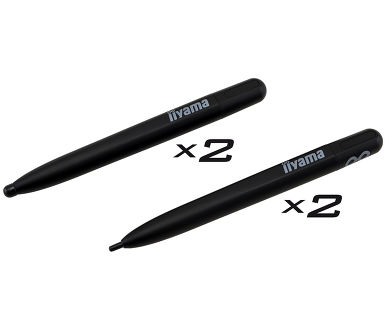

Extra slot for optional slot PC, two touch pens.

Kiosk mode: yes

Max. non-stop operating time: 24/7

Media playback: yes

Glass thickness: 4mm

Glass hardness: 7H

Housing (bezel): metal

OSD key lock: yes

GENERAL

OSD languages: EN, DE, FR, ES, IT, RU, CZ, NL, PL

User controls: general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings: (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode, colour temp), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, share, device, personal, system)

Plug&Play: DDC2B

Warranty: 5 years (for details and eligible countries please check the Warranty section of our website)

SUSTAINABILITY

Regulations: CB, CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, REACH

Other: REACH SVHC above 0.1%: Lead
