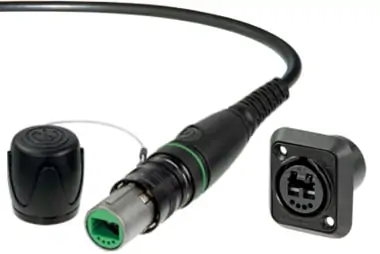

The Neutrik OpticalCon Duo 300m is a rugged fiber optic cable used to transmit massive amounts of audio, video, and data across long distances. It is highly prized in the live events industry because it turns delicate, fragile glass-fiber cables into a tough, heavy-duty mobile tool that can be easily rolled out and torn down.
The 3 main benefits of the system include:
Live events involve heavy foot traffic, rolling road cases, and sometimes outdoor weather. The cable is heavily reinforced with a cut-proof, rodent-resistant jacket and aramid yarn (the same material used in bulletproof vests) to prevent the delicate glass fibers from breaking.
Dust, dirt, and moisture can ruin a fiber optic signal. The connector features a built-in spring-loaded shutter that closes automatically when you unplug the cable. Once plugged in, the connection is rated IP65, which means it is completely waterproof and dust-tight.
If the tip of a traditional fiber cable gets damaged, you usually have to throw the whole cable away or send it to a repair shop. The OpticalCon Duo accommodates standard LC connectors. This means you can plug conventional LC cables into both the front and back of your patch panels and quickly do basic repairs on site
| General Specifications | : |
|---|---|
| Channels | 2 |
| Length | 300m |
| Cable Type | Available in Multimode (50 μ m) or Singlemode (9 μ m) fiber options |
| Durability & Protection | : |
| Automatic Dust Shutters | Integral sealing shutters block dust and dirt when unmated |
| IP Rating: IP65 | rated (water and dust resistant) when mated |
| Connection System | Uses a standard LC-Duplex connection under its rugged housing |
| Locking Mechanism | Spring-loaded push-pull mechanism |
| Mechanical & Physical Details | : |
| Cable Diameter | Roughly 5 mm (depending on the specific jacket material chosen). |
| Minimum Bending Radius | 5 cm (for standard mobile cable) |
| Cable Retention | Built with Aramid yarn (a strong, heat-resistant synthetic fiber) for pulling and bending safety. |
