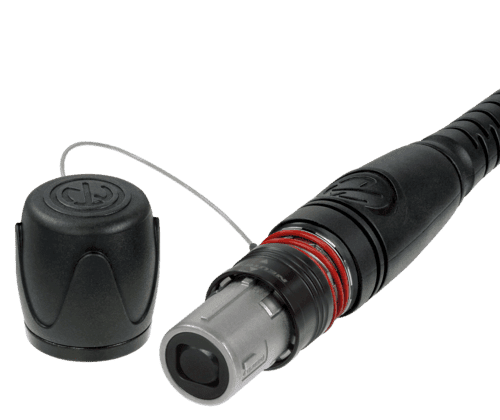

The Neutrik OpticalCon MTP 24 Fibre 120m is a rugged, multi-channel fiber optic cable. It carries 24 data signals through one wire over long distances. It is perfect for live events because it shrinks heavy wire setups into one single, durable cable.
1. High Capacity in a Tiny Space
You get 24 separate fiber channels packed inside just one connector. It cuts down cable clutter and weight. Setup takes much less time because crew members lay out one cable instead of 24 individual ones.
2. Extreme Durability
The cable features heavy-duty strain relief and a tough, all-metal housing. When connected, it is waterproof and dustproof (IP65 rated).
The fragile glass fibers are protected from people stepping on them, rain, or being pulled hard. It handles the rough “load-in” and “load-out” of live touring events with ease.
3. Low Maintenance and Easy Cleaning:
The connector uses an automatic, spherical metal shutter. This shutter covers the glass fibers when the cable is unplugged.
Dust and dirt are the biggest enemies of fiber optics. The shutter keeps the glass perfectly clean. Crew members save time because they do not have to clean the fiber tips constantly
| Manufacturer | Neutrik |
|---|---|
| Mechanical & Physical | : |
| Channel Count | 24 fibers |
| Housing | Heavy-duty, all-metal shell with an industry-standard D-size panel cutout |
| Locking Mechanism | Reliable push-pull system |
| Protection Class | IP65 when mated (dust-tight and water jet-resistant) |
| Durability | Tested for up to 10,000 mating cycles with minimal change in attenuation (<0.20 dB) |
| Optical & Cable Properties | : |
| Ferrule Type | USCONEC Elite female ferrules |
| Fiber Types | Available in both Singlemode (9 μ m) and Multimode (50 μ m, OM3) |
| Cable Jacket | Mobile field cables feature black, matte polyurethane (PUR) for tear and abrasion resistance |
| Cable Diameter | Approximately 7 mm for Advanced cables; 3.8 mm (ferrule) or 3.5 mm for Lite versions |
| Minimum Bending Radius | 8.2 cm (Advanced PUR cable) |
| Environmental | : |
| Temperature Range | -40°C to +75°C |
| Maintenance | Spherical shutter protects interior fibers from dust; easy to clean without special tools |
