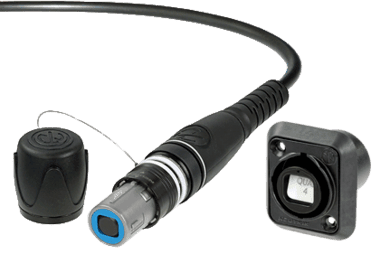

The Neutrik OpticalCon Quad 150m is perfect for live events because it packs four fiber optic channels into one rugged, reliable cable. It lets event crews run high-speed video, audio, and internet across large venues without signal loss.
Four Channels in One: You can send four separate signals at the same time. This saves you from running four different cables.
Tough Build: It features a heavy-duty outer jacket and special armor that protects the delicate glass fibers inside. It resists cuts and bending.
Weatherproof: When plugged in, the connections block dust and water (rated IP65). This makes it great for outdoor festivals.
Built-In Shutters: It has special covers that automatically snap shut when unplugged. This keeps the glass ends clean and prevents eye damage from lasers.
Easy to Roll: The 150-meter (about 492 feet) cable comes on a heavy-duty drum, making it easy to roll out and pack up
| Fiber Count | 4 fibers |
|---|---|
| Fiber Modes | Available in Multimode (MM) (50/125 μm) or Singlemode (SM) (9/125 μm) |
| Cable Jacket | Highly robust PUR (polyurethane) or X-TREME (cut-proof and rodent-resistant outer jacket) |
| Cable Diameter | 5.8 mm (Standard PUR) |
| Minimum Bending Radius | 5.8 cm |
| Strain Relief / Strength | Aramid yarn wrap |
| Connector Specifications | : |
| Connector Type | OpticalCon QUAD (LC-Duplex based) |
| Mating Cycles | > 2,500 connections |
| Insertion Loss | < 0.45 dB per connection |
| Return Loss | > 50 dB (PC) and > 60 dB (APC) |
| Dust Protection | Automatic sealing shutters with silicone gaskets |
| Environmental | Waterproof up to IP65 (when mated) |
| Deployment | : |
| Length | 150 meters (492 feet) |
| Reel Type | Supplied on a heavy-duty cable reel (e.g., Schill or GT-style drums) for rapid deployment and tangle-free winding |
| Operating Temperature | -40 °C to +70 °C |
