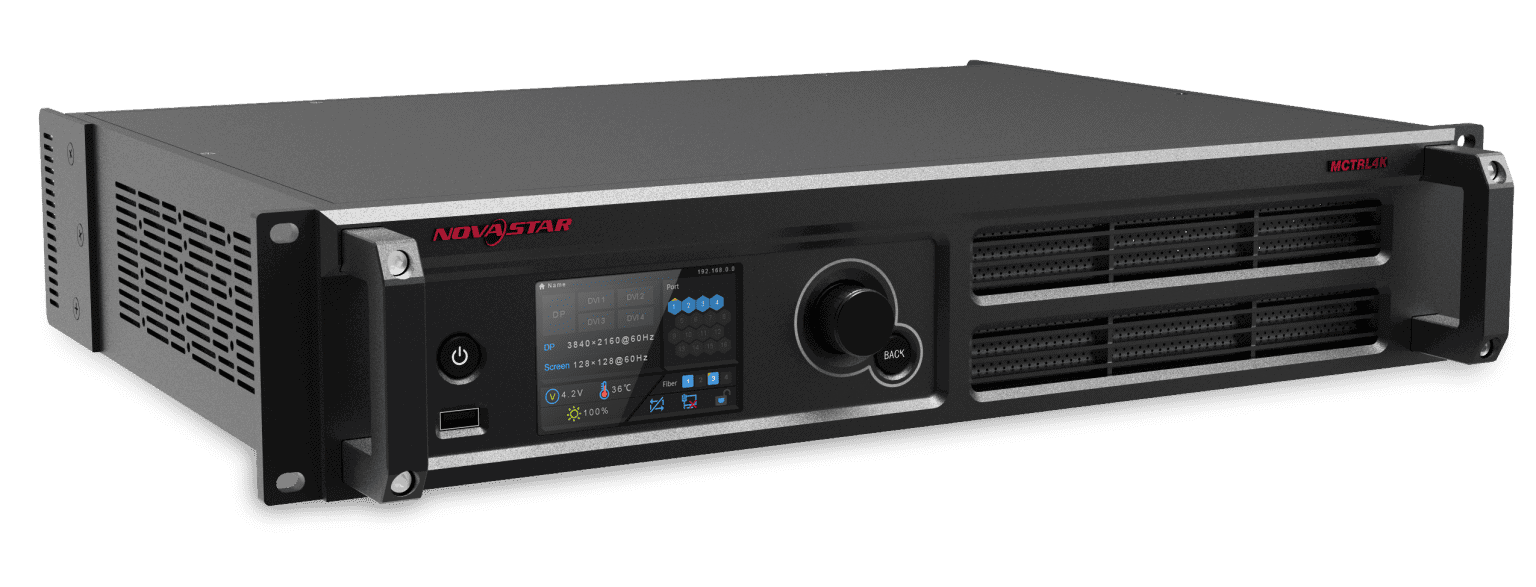

The Novastar MCTRL4K is a powerful, reliable controller designed for massive LED screens. It is perfect for live events because it easily handles ultra-high-definition video and smooths out complex, large-scale stage setups.
The device takes a true 4K signal and delivers it without quality loss. It is built to handle huge custom resolutions. Event crews can connect it using standard Ethernet or long-range optical fiber cables. This makes it highly flexible for big stages and large venues.
Top benefits for events include:
Stunning Visuals: It supports HDR. This means brighter highlights, deeper blacks, and richer colors for the crowd.
No Delays: Video processing takes less than 1 millisecond. This ultra-low latency keeps live cameras and screen content perfectly synced.
Massive Screen Capacity: One unit runs up to 16 Ethernet ports or 4 optical ports. You can also link up to 10 units together for giant installations.
| Manufacturer | Novastar |
|---|---|
| Capacity & Resolution | : |
| Maximum Capacity | 8.3 million pixels |
| Max Input Resolution | 3840 \times 2160 @ 60Hz |
| Custom Resolutions | Up to 7680 pixels in maximum width or height |
| Video Inputs | : |
| Display Port | 1x DisplayPort 1.2 |
| HDMI 2.0 | 1x (Supports HDCP 2.2) |
| Dual-Link DVI | 2 |

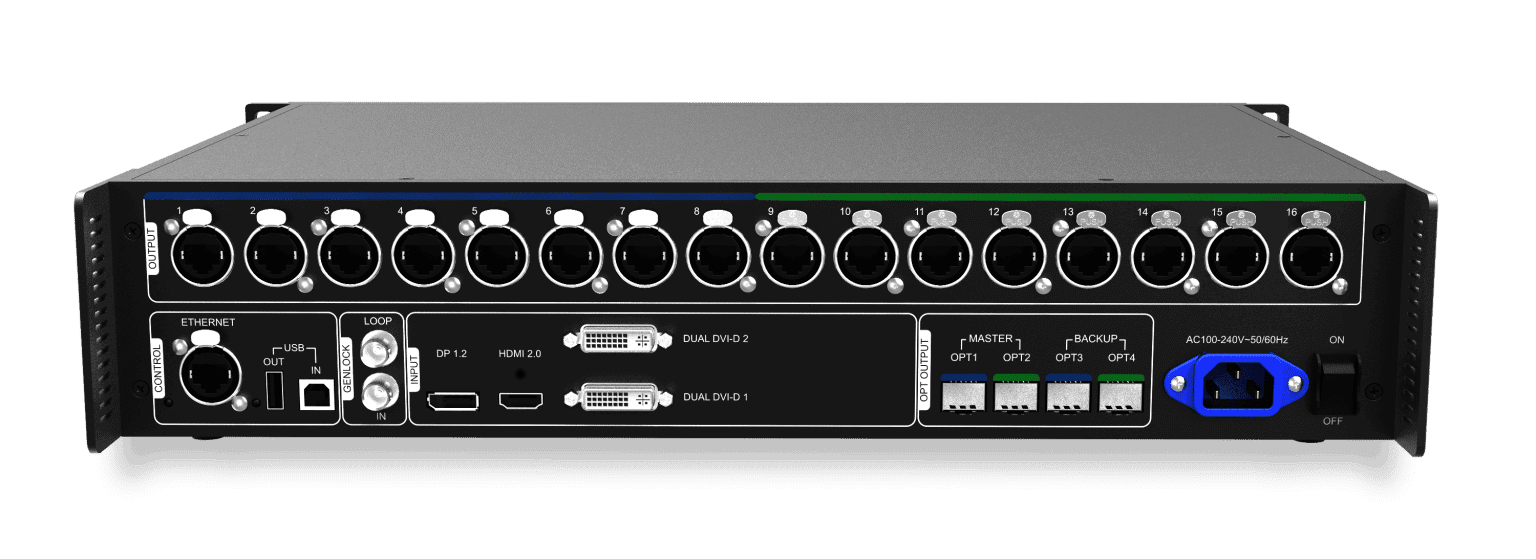

| Video Outputs | : |
| Neutrik Gigabit Ethernet Ports | 16 |
| 10G Optical Fiber ports | 4 |
| Supports Multi-Card Mode | Can function as two independent controllers |
| Image Features | : |
| HDR Support | HDR10 and HLG standards |
| Colour Depth | 8-bit, 10-bit, and 12-bit |
| Latency | Very low, at less than 1 millisecond |
| 3D Capability | Supported when used with the EMT200 3D Emitter |
| Physical & Electrical | : |
| Power Input | AC 100V–240V, 50/60Hz |
| Power Consumption | 30 W |
| Operating Temperature | -20° C to +60° C |
| Dimensions | 482.6 mm × 372.0 mm × 96.0 mm (Standard 19-inch 2U rack) |
| Weight | 4.6 kg |
