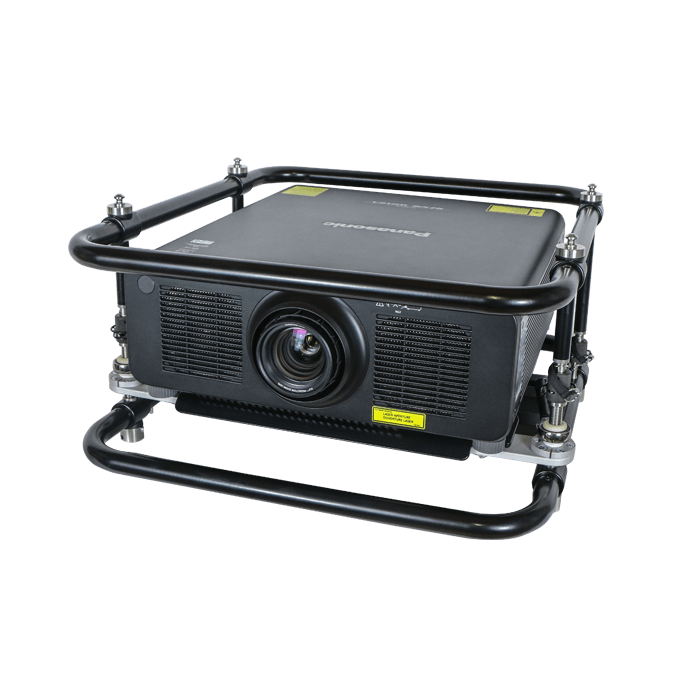

Panasonic PT-RZ120 Laser Projector

The 12,000 lm*1 PT-RZ120 is a first among 1-Chip DLP™ projectors. Further refinements to our high-quality imaging technology and filterless cooling system result in uncommonly high brightness from a compact body. Expect vibrant, high-contrast pictures and consistent color uniformity across multiple screens courtesy 1-Chip DLP™ technology and dual solid-state laser light engines. Hermetically sealed optics contribute to 20,000 hours*2 maintenance-free projection, enhancing installation flexibility in elevated positions such as museums, auditoriums, university halls, and even larger, brighter environments.

  • AC 100V – 240V, 50Hz/60Hz
  • 1,100 W (11 A – 4.5 A)
  • NORMAL: 730W ECO: 590W SHUTTER: 100W
  • *Operating Temperature: 25 °C (77 °F), Altitude: 700 m (2,297 ft),
  • IEC62087: 2008 Broadcast contents,
  • Picture mode: Standard, Dynamic Contrast2
  • STANDBY MODE [ECO]: 0.5W STANDBY MODE [NORMAL]: 7W
  • STANDBY MODE (When the [QUICK STARTUP] function is enabled): Approx. 100 W
  • Max 3,754 BTU
  • 17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
  • DLPTM chip x 1, DLPTM system
  • 2,304,000 (1920 x 1200)
  • Laser Diode
  • 12,000 lm (ANSI)*2/12,600 lm (Center)*3
  • (When [OPERATING MODE] is set to [NORMAL])
  • 9,600 lm (When [OPERATING MODE] is set to [ECO]) 10,000 lm (When [OPERATING MODE] is set to [QUIET1]) 8,000 lm (When [OPERATING MODE] is set to [QUIET2])
  • 20,000 hours (NORMAL)/24,000 hours (ECO)
  • 1920 x 1200 pixels
  • 3,000,000:1 (All White/All Black) (Dynamic Contrast3)
  • 1.27-15.24 m (50-600 in),
  • 1.27-5.08 m (50-200 in) with ET-DLE055, 2.54-8.89 m (100-350 in) with ET-DLE035, 16:10 aspect ratio
  • 90%
  • Powered zoom/focus lenses (1.7-2.4:1), F 1.7-1.9, f 25.6–35.7 mm
  • Optional powered zoom/focus lenses and fixed-focus lens
  • Resolution: 640 x 400 to 1920 x 1200
  • Dot clock frequency: 162 MHz or less
  • PIAS (Panasonic Intelligent Auto Scanning) system
  • Resolution: 480i/576i to 1920 x 1080
  • Dot clock frequency: 148.5 MHz or less
  • The HD/SYNC and VD terminals do not support 3 value SYNC.
  • Moving image signal resolution: 480i*5/576i*5 to 1920 x 1080
  • Still image signal resolution: 640 x 400 to 1920 x 1200 (non-interlace) Dot clock frequency: 25 MHz to 162 MHz
  • Moving image signal resolution: 480i*5/576i*5 to 4096 x 2160
  • Still image signal resolution: 640 x 400 to 1920 x 1200 (non-interlace) Dot clock frequency: 25 MHz to 594 MHz
  • Moving image signal resolution: 480i*5/576i*5 to 4096 x 2160
  • Still image signal resolution: 640 x 400 to 1920 x 1200 (non-interlace) Dot clock frequency: 25 MHz to 297 MHz
  • SD-SDI signal HD-SDI signal 3G-SDI signal
