The Allen & Heath DT168 is a rugged, portable Dante interface designed to add 16 microphone preamps and 8 line outputs to compatible mixers and digital networks. It features 96kHz analog-to-digital converters, dual Dante ports, and AES67 compatibility, making it highly versatile for live stages, rental companies, and permanent installations.

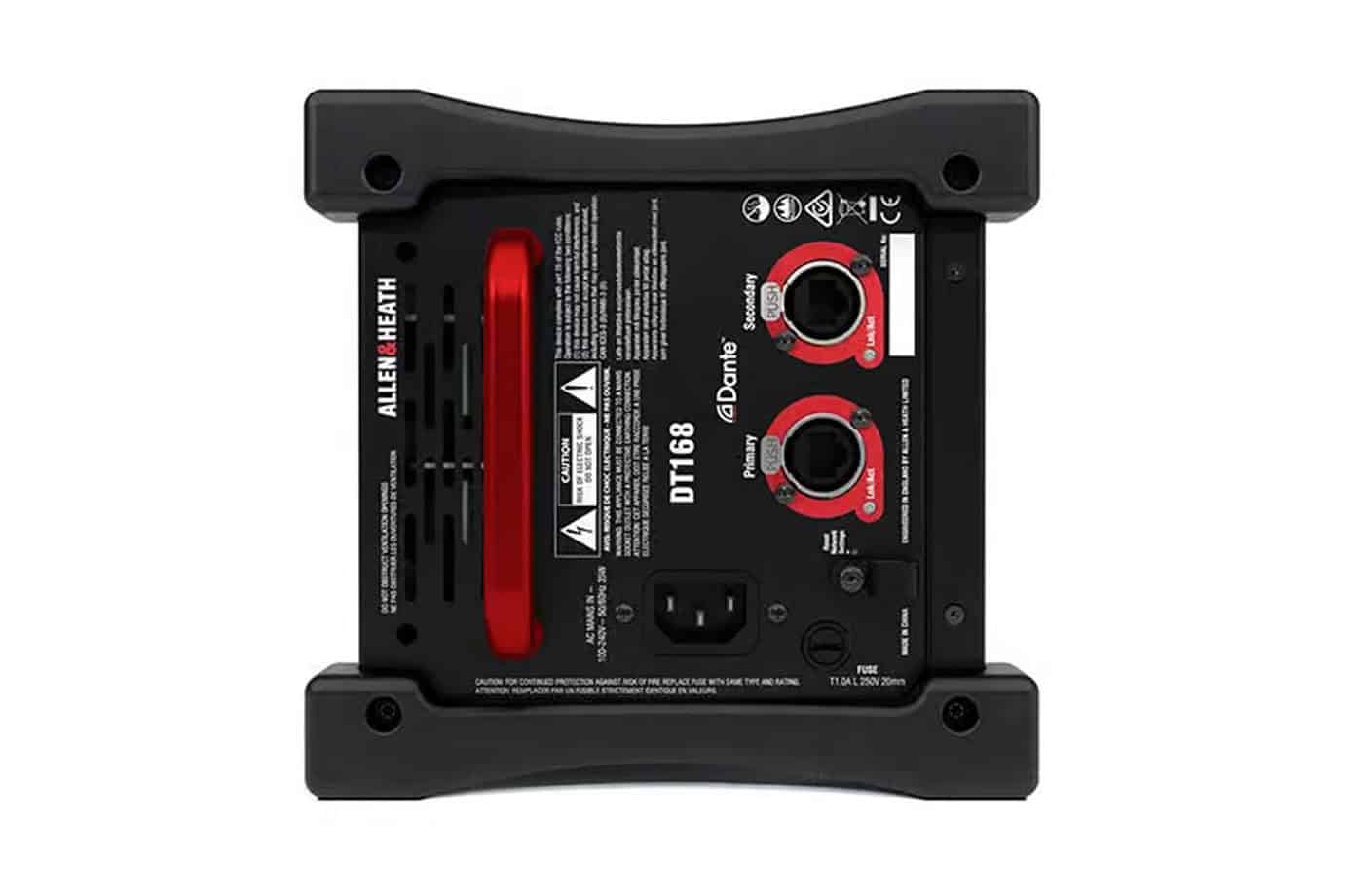

Built for the demands of the road, the unit houses a fanless, durable chassis protected by hard-wearing rubber bumpers and a sturdy carry handle. It can be deployed flat on the stage floor, placed on its side, or installed into a 19-inch rack via an optional rack-mount kit. Its locking EtherCon connectors ensure secure and reliable network connections even in high-traffic environments.
The DT168 offers seamless integration with Allen & Heath’s dLive, Avantis, AHM, and SQ mixing ecosystems. Engineers can remotely control the onboard preamps (including analogue gain, pad, and phantom power) directly from the console surface or via the DT Preamp Control software on Windows and macOS. Furthermore, dual Dante ports support switched or redundant operation modes, while full Dante Domain Manager compatibility ensures seamless operation across large, distributed audio networks.
| Manufacturer | Allen and Heath |
|---|---|
| Core Connectivity & I/O | : |
| Inputs | 16 × balanced XLR Mic/Line inputs with +48V Phantom Power status LEDs |
| Outputs | 8 × balanced XLR line outputs (nominal +4dBu level). |
| Network Ports | 2 × Dante ports on EtherCon connectors (Primary and Secondary) |
| Network Modes | Can be set to Redundant (for failsafe operation) or Switched (for daisy-chaining) via Dante Controller |
| Audio Performance | : |
| Sample Rates | Switchable between high-fidelity 96kHz or standard 48kHz operation |
| Bit Depth | 24-bit |
| Preamp Control | Recallable Allen & Heath preamps with +5 to +60dB gain, 1dB steps, and -20dB Pad. |
| Maximum Output Level | +22dBu |
| Control & Compatibility | : |
| Integration | Direct, remote control of preamp Gain, Pad, and Phantom Power directly from Allen & Heath dLive, Avantis, AHM, and SQ-series consoles. |
| AES67 | Compatible for bridging with other audio-over-IP networks. |
| Dante Domain Manager (DDM) | Fully compatible. |
| Third-Party Control | Integrates with third-party systems via DT Preamp Control software |
| Design & Portability | : |
| Form Factor | Rugged stagebox designed for floor placement or touring rigs |
| Protection | Hard-wearing chassis with protective rubber bumpers. |
| Operation | Fanless design for silent operation |
| Handle | Integrated heavy-duty carry handle. |
| Mounting | Freestanding (horizontal or vertical) or 19-inch rack mountable via the optional 4U AB1608-RK19 kit |
| Power & Physical Specifications | : |
| Power Supply | Internal universal voltage PSU (100–240V AC, 50/60Hz). |
| Power Consumption | 40 Watts maximum |
| Dimensions | 399 × 189 × 182 mm (\(15.7^{\prime\prime} \times 7.4^{\prime\prime} \times 7.1^{\prime\prime}\)). |
| Weight | 4.75 kg (10.5 lbs) |
